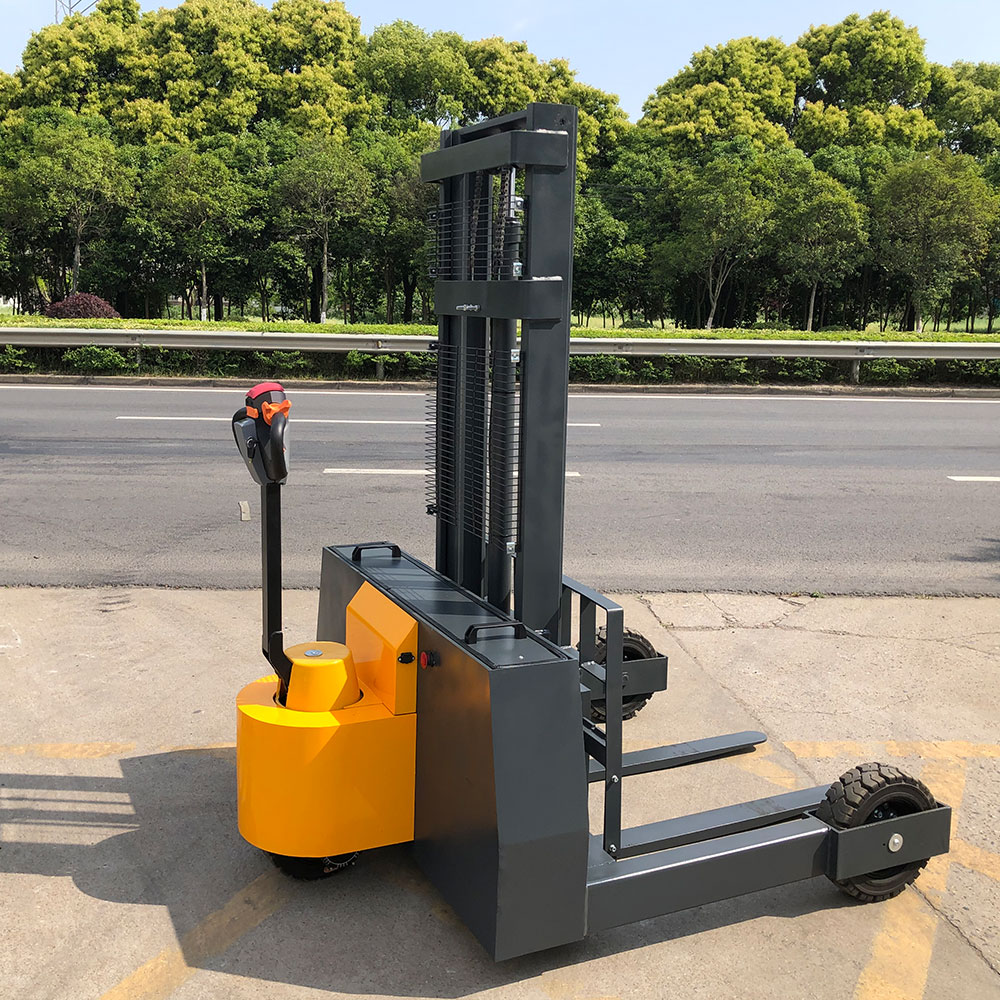

Hyder Walk behind Rough Terrain Pallet Stackers 1.5ton

Conquer Uneven Ground with Confidence: Introducing the HTB/HTE Series Walkie-Behind Rough Terrain Pallet Stackers

Engineered for the toughest outdoor and semi-outdoor material handling challenges, the HTB15R, HTB20R, HTB20R, HTB25R, and HTE30R walkie-behind pallet stackers are your ultimate solution for lifting and transporting palletized loads over rough, uneven surfaces. Built with rugged durability and operator-centric design, these battery-powered machines deliver exceptional performance where standard warehouse equipment falters.

Key Features & Benefits:

Rugged Rough Terrain Performance:
- Solid Rubber Tires: Provide superior puncture resistance and stability on gravel, dirt, uneven pavement, and debris-filled yards.
- High Ground Clearance (110mm): Navigates obstacles, bumps, and rough patches effortlessly.
- Impressive Gradeability (5% Loaded / 10% Unloaded): Confidently tackles slopes and inclines common in outdoor environments.
- Robust Chassis & Construction: Designed to withstand the rigors of demanding outdoor use.
Powerful & Efficient Operation:
- Advanced PMSM Drive Motors (1.0kW - 1.2kW): Deliver smooth, responsive power and high torque for excellent traction and control in challenging conditions.
- Strong Lifting Motors (2.2kW - 3.0kW): Ensure fast and reliable lifting even at full capacity (Max Lift Speed: 60-100 mm/s loaded).
- Battery Powered (48V/52Ah): Offers quiet, emission-free operation with ample runtime for demanding shifts. (Note: HTE30R battery spec not listed)
- Electromagnetic Braking: Provides immediate, reliable stopping power for enhanced safety on inclines and uneven ground.
Operator Safety & Ergonomics:
- Walk-Behind Design with Deadman Function: Intuitive control; the machine stops instantly if the operator releases the handle.
- Adjustable Handlebar (1050mm - 1520mm): Accommodates operators of different heights comfortably, reducing fatigue.
- Clear Visibility & Control: Optimized mast design and handlebar position provide excellent load and path visibility.
- Safety Support Legs: Ensure stability during lifting and stacking operations.
Versatile Lifting & Maneuverability:
- Wide Capacity Range (1500kg - 3000kg): Choose the model perfectly suited to your load requirements.
- High Lift Heights (Up to 3000mm on HTB models): Handle stacking tasks efficiently. (HTE30R optimized for lower lifts: 360mm)
- Compact Turning Radius (1578mm): Maneuvers effectively in confined outdoor spaces or around obstacles.
- Standard Fork Size Options: (100x35x1070mm or 122x40x1070mm) with adjustable width (1000mm outside width) to suit various pallets.
Durable & Reliable Design:
- Heavy-Duty Components: Built to last in harsh environments.
- Proven Drive & Wheel Configuration (1x Drive / 2 Front Wheels): Ensures stability and traction.
- Low Fork Height (<35mm - <45mm): Allows easy pallet entry even on slightly uneven ground.

Model Comparison Summary:

Feature	HTB15R	HTB20R	HTB25R	HTE30R
Rated Load	1500 kg	2000 kg	2500 kg	3000 kg
Drive Motor	PMSM 1.0 kW	PMSM 1.2 kW	PMSM 1.2 kW	PMSM 1.2 kW
Lift Motor	2.2 kW	2.2 kW	3.0 kW	3.0 kW
Max Lift Height	3000 mm	3000 mm	3000 mm	360 mm
Lift Speed (Loaded)	100 mm/s	100 mm/s	90 mm/s	90 mm/s
Fork Size (TxWxL)	100x35x1070 mm	122x40x1070 mm	122x40x1070 mm	122x40x1070 mm
Battery	48V / 52Ah	48V / 52Ah	48V / 52Ah	-
Key Strength	Entry Capacity	Balanced Power	Higher Capacity & Lift Power	Max Capacity & Low-Level Power

Ideal Applications:

Building & Construction Sites
Lumber Yards & Landscaping Suppliers
Agriculture & Farming Operations
Brick, Block, and Masonry Suppliers
Outdoor Storage Yards
Manufacturing Plants with Rough Yard Areas
Event & Festival Logistics
Any application requiring pallet movement over uneven, unpaved, or debris-strewn ground.
