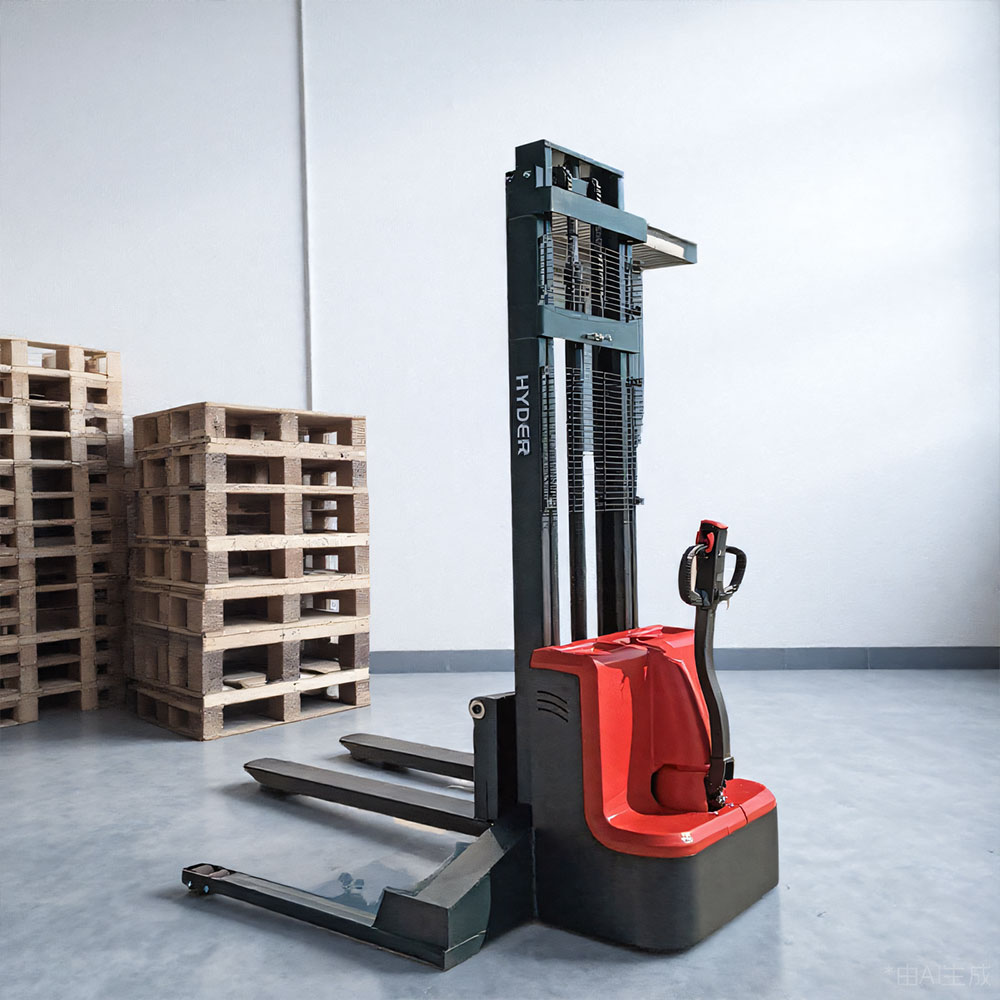

Maximize Efficiency with Our Wide Leg Walkie Stacker

Looking for a reliable and versatile solution to handle US closed pallets with ease? Our Wide Leg (Straddle Leg) Walkie Stacker is designed to streamline your material handling operations, offering superior stability, maneuverability, and lifting power. Whether you're working in warehouses, distribution centers, or manufacturing facilities, this stacker ensures smooth and safe pallet handling every time.

Key Advantages for US Closed Pallets

✅ Stable & Secure Handling
With an adjustable support leg width (1000-1500mm), this stacker provides unmatched stability when transporting US standard pallets (1000x1200mm). The wide straddle legs prevent pallet tipping, ensuring safe and secure loads.

✅ Compact Yet Powerful
Featuring a tight turning radius (1431mm) and a right-angle stacking aisle width of 2305mm, this stacker excels in narrow aisles and confined spaces—perfect for crowded warehouses.

✅ High Lifting Capacity
Choose between 1000kg or 1500kg load capacities with a 500mm load center, making it ideal for heavy-duty pallet stacking. The 2.2kW lifting motor delivers smooth and efficient operation at heights up to 3500mm.

✅ Smooth & Efficient Operation

• Battery-powered for eco-friendly, emission-free performance.

• 45 km/h driving speed (full/no load) for quick transport.

• Electromagnetic braking ensures precise stopping power.

✅ Durable & Low Maintenance
Equipped with polyurethane wheels, this stacker offers long-lasting performance with minimal wear, reducing downtime and maintenance costs.

Basic Parameters

Mobility & Dimensions

| Tire Type | Polyurethane Wheels |
| Drive Wheel Size | 160mm (dia) × 50mm (width) |
| Front Wheel Size | 80mm (dia) × 70mm (width) |
| Balance Wheel Size | 125mm (dia) × 50mm (width) |
| Turning Radius | 1431mm |
| Right-Aisle Stacking Width (1000x1200 pallet) | 2305mm |
| Vehicle Length | 1751mm |
| Adjustable Leg Width | 1000–1500mm |

Lifting Performance

| Max Lifting Height | 3500mm |
| Mast Closed Height | 1590–2390mm (varies by model) |
| Mast Extended Height | 2080–4080mm (varies by model) |
| No-Load Lifting Speed | 100mm/s |
| Full-Load Lifting Speed | 50mm/s |

Power & Performance

| Drive Motor Power | 0.75kW |
| Lifting Motor Power | 2.2kW |
| Max Travel Speed | 45 km/h (loaded/unloaded) |
| Gradeability | 35% (full/no load) |
| Braking System | Electromagnetic Brake |

Battery & Runtime

| Battery Voltage | 24V |
| Battery Capacity | 80Ah |

---

Why Include This Spec Sheet?

Technical Highlights

• Lifting Heights: 1600mm – 3500mm (adjustable mast options)

• Battery: 24V 80Ah for extended runtime

• Mast Options: Multiple configurations for varying storage needs

• Ergonomic Handle: Adjustable (750mm–1230mm) for operator comfort

Why Choose Our Walkie Stacker?

✔ Optimized for US Pallets – Designed to handle 1000x1200mm pallets with ease.
✔ Space-Saving Design – Perfect for narrow aisles and high-density storage.
✔ Reliable Performance – Built for durability in demanding environments.

Upgrade your material handling today with the Wide Leg Walkie Stacker—efficient, powerful, and built to last!
