U-Shaped Lift Platform – Heavy-Duty Pallet & Assembly Line Solution

Safe, Stable, and Designed for Efficiency

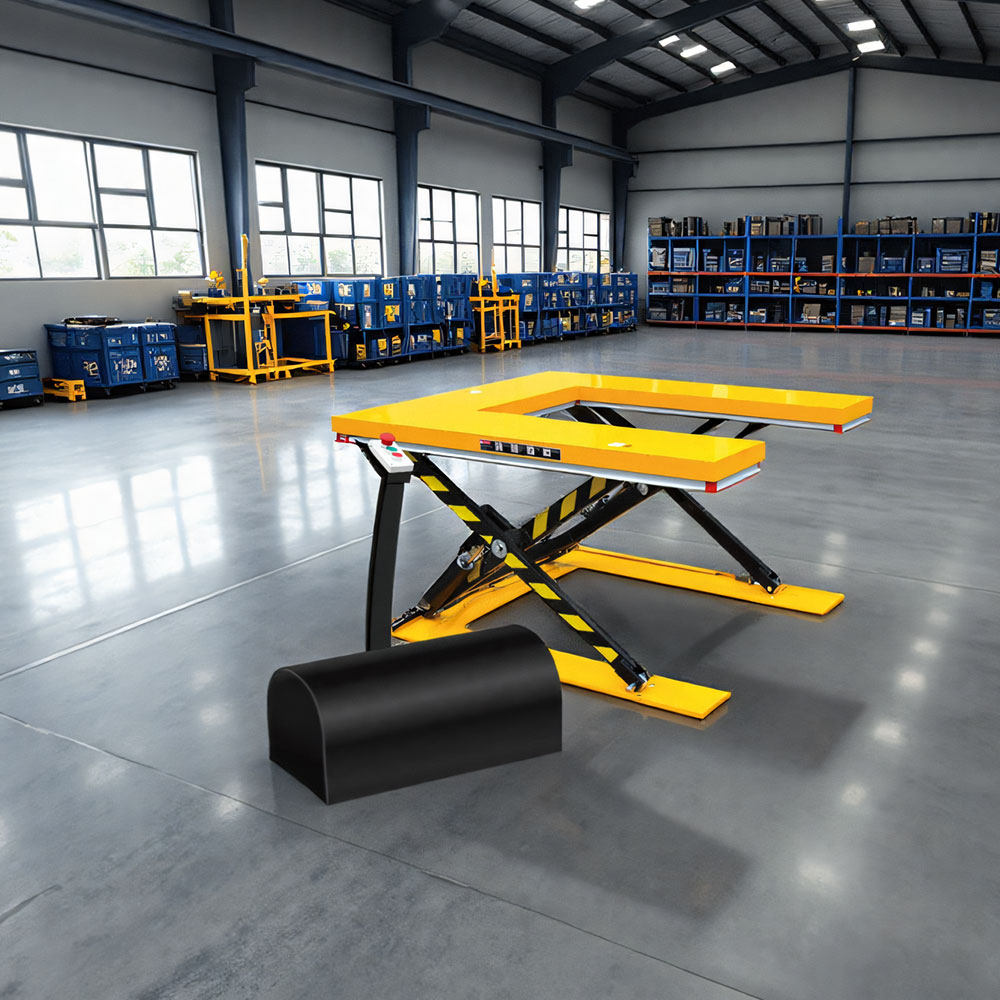

Our U-shaped lift platform is engineered to streamline material handling in warehouses, assembly lines, and production facilities. With a robust 2,200 lbs (1,000kg) capacity and a U-shaped design, this platform allows seamless pallet/cage positioning with a pallet truck, while providing a secure elevated workspace.

Key Features & Benefits

✅ U-Shaped Design

Open-front configuration enables easy loading/unloading with pallet jacks or forklifts.
Ideal for assembly lines as a feeding table or workstation.

✅ Heavy-Duty Performance

Capacity: 1,000kg (2,200 lbs) – handles pallets, cages, and bulky loads.
Lift Range: 85mm (min) to 860mm (max) – adjusts to ergonomic working heights.

✅ Advanced Safety & Control

Remote power system with UP/DOWN/E-STOP controls for operator convenience.
Overload bypass valve protects the pump and prevents accidents.

✅ Durable Construction

Worktable Size: 1450×1140mm – spacious for pallets or equipment.
Powder-coated steel frame resists corrosion in industrial environments.

✅ Versatile Applications

Warehouses: Lift pallets to ergonomic heights for order picking.
Assembly Lines: Serve as a feeding table for parts or tools.
Manufacturing: Transport cages or heavy components safely.

Technical Specifications

Model	DUG1000 (U-Shaped)
Rated Capacity	1000kg (2,200 lbs)
Min Height	85mm
Max Height	860mm
Worktable Size	1450×1140mm
U-Opening Size	1080×580mm
Voltage	380V/220V
Self Weight	240kg

Why Choose This U-Shaped Lift?

✔ Space-Saving: Fits tight aisles while accommodating pallet trucks.
✔ Low Maintenance: Hydraulic system with no complex electronics.
✔ Safety Certified: Built to industrial standards with fail-safe controls.
