Single Scissor Lift Table Fixed for Package Pick

Single Scissor Lift Tables - Compact & Efficient Lifting Solutions (1,000kg to 4,000kg Capacity)

Precision Vertical Positioning for Industrial and Commercial Applications

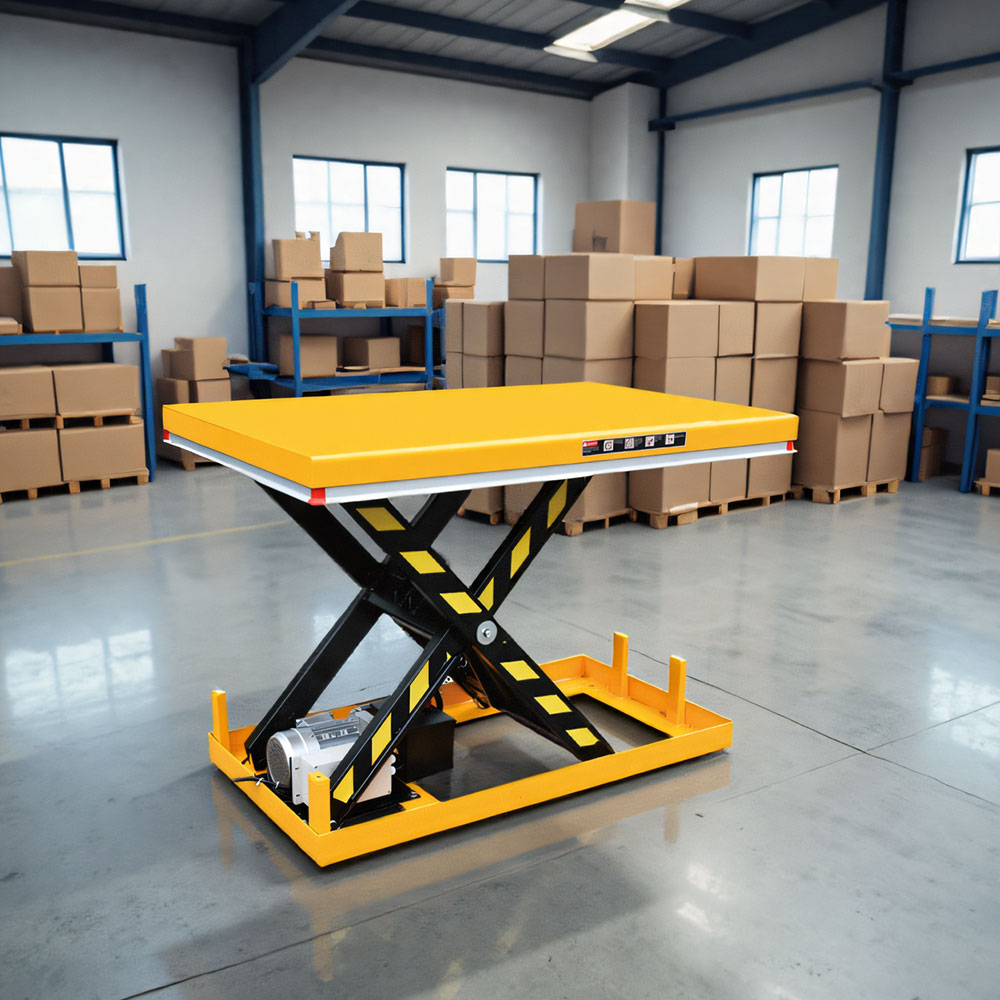

Our single scissor lift tables (DG series) offer reliable, space-saving vertical lifting for a wide range of material handling needs. With capacities from 1,000kg to 4,000kg and lift heights up to 1.05 meters, these robust platforms provide the perfect balance of strength, stability, and compact design.

Key Features & Benefits

✅ Heavy-Duty Performance

Three models available: DG1001 (1,000kg), DG2001 (2,000kg), DG4001 (4,000kg)
Low-profile design (205-250mm min height) for easy loading
Space-saving single scissor mechanism

✅ Industrial-Grade Construction

Reinforced steel frame with powder-coated finish
Spacious work platforms (up to 1,700×1,200mm)
380V/220V power options for global compatibility

✅ Safety & Reliability

Smooth hydraulic operation
Stable lifting with minimal sway
Low maintenance design

Technical Specifications

Model	DG1001	DG2001	DG4001
Capacity	1,000kg	2,000kg	4,000kg
Lift Height	0.99m	1.0m	1.05m
Min Height	205mm	230mm	250mm
Platform Size	1,300×820mm	1,300×850mm	1,700×1,200mm
Voltage	380V/220V	380V/220V	380V/220V
Weight	180kg	260kg	410kg

Typical Applications

🏭 Warehousing & Logistics:

Pallet loading/unloading
Order picking stations
Conveyor line integration

🏗️ Manufacturing & Assembly:

Workpiece positioning
Assembly line feeding tables
Machine maintenance platforms

🛠️ Automotive & Industrial:

Tool and equipment handling
Parts positioning
Packaging stations

🛒 Retail & Commercial:

Stockroom organization
Display staging
Cleaning/maintenance access

Why Choose Our Single Scissor Lift Tables?

✔ Cost-effective alternative to complex lifting systems
✔ Space-saving design fits tight work areas
✔ Easy to maintain with simple hydraulic systems
✔ Versatile for countless industrial applications

📞 Contact us today about custom configurations!
