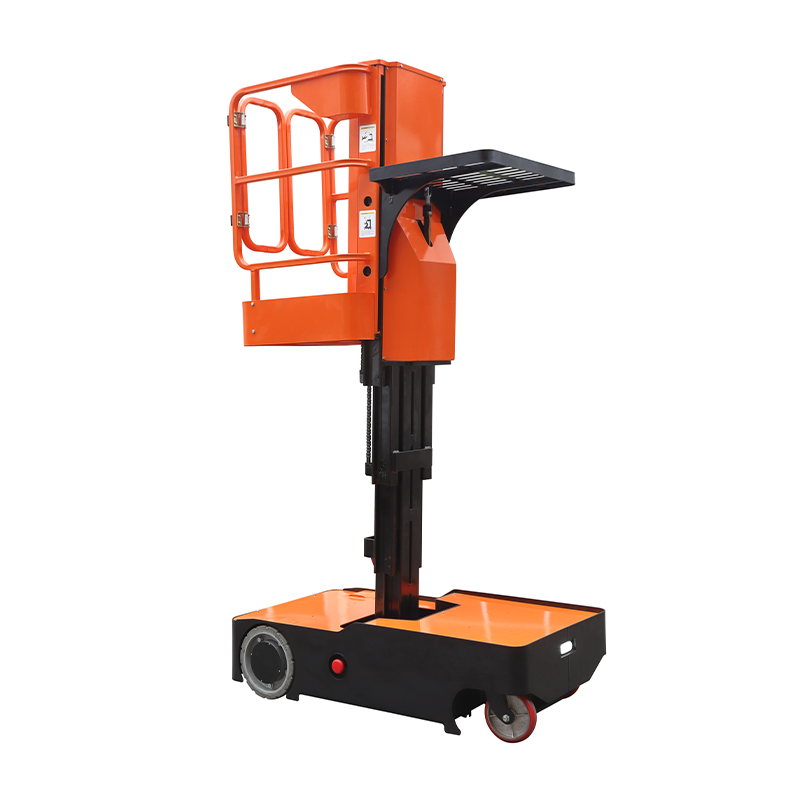

Maximize low-level order picking productivity with the HFOP3 (3000mm platform) and HFOP4 (4000mm platform) Electric Order Pickers. These compact, maneuverable warehouse trucks deliver precise proportional control lifting and driving, reaching work heights up to 5125mm. Engineered for narrow aisles with an ultra-tight 1700mm turning radius and identical compact footprints (1480mm L x 756mm W), they ensure exceptional operator comfort and safety with platform self-locking doors, full-height travel capability, and robust 150kg operator platform / 90kg pallet platform payloads.
Key Specifications & Features:
-
Unmatched Reach & Lift: Access heights up to 3000mm (HFOP3) / 4000mm (HFOP4) platform max height. Achieve work heights of 4125mm (HFOP3) / 5125mm (HFOP4).
-
Superior Maneuverability: Identical 1700mm minimum turning radius and compact dimensions for effortless navigation in confined warehouse spaces.
-
Optimized Platforms: Spacious 695x720mm operator platform and dedicated 550x740mm pallet platform with 480mm travel. Rated for 150kg (operator) / 90kg (pallet).
-
Advanced Safety Systems: Comprehensive protection including tilt protection system, emergency pressure relief valve, emergency descent switch, emergency stop button, and platform self-locking door.
-
Reliable Performance: 24V drive system (2 x 0.5kW motors) and 24V lift motor (0.8kW). Full-height travel capability enhances efficiency.
-
Robust Construction: High 1100mm guardrail, 15mm ground clearance, and durable tires (Front: Ø200x50mm, Rear: Ø305x100mm).
-
Extended Runtime: Powered by 24V/100Ah DC batteries (2x12V/100Ah) with 24V/15A chargers featuring charging protection.
-
Smart Operation: Integrated fault diagnostic system and intuitive proportional control for smooth, precise movements.
-
Gradeability: Confidently handle ramps with a 5°-8° max slope capability.
-
Travel Speed: Efficient 0-4 km/h travel speed.
Technical Specifications Summary:
| Feature | HFOP3 | HFOP4 |
|---|---|---|
| Max Platform Height | 3000 mm (9.8 ft) | 4000 mm (13.1 ft) |
| Work Height | 4125 mm (13.5 ft) | 5125 mm (16.8 ft) |
| Machine Dimensions (LxWxH) | 1480x756x1475 mm | 1480x756x1805 mm |
| Operator Platform (Size/Load) | 695x720 mm / 150 kg | 695x720 mm / 150 kg |
| Pallet Platform (Size/Load/Travel) | 550x740 mm / 90 kg / 480 mm | 550x740 mm / 90 kg / 480 mm |
| Turning Radius | 1700 mm | 1700 mm |
| Weight | 840 kg | 870 kg |
| Lift Time (Up/Down) | 30 sec / 40 sec | 40 sec / 50 sec |
| Drive Motor | 24V / 2 x 0.5kW | 24V / 2 x 0.5kW |
| Lift Motor | 24V / 0.8kW | 24V / 0.8kW |
| Battery (DC) | 24V / 100Ah | 24V / 100Ah |
| Charger (DC) | 24V / 15A | 24V / 15A |
Why Choose the HFOP3/HFOP4 Order Pickers?
-
Enhanced Productivity: Reach higher levels faster with smooth proportional control lifting and driving.
-
Ultimate Safety: Multiple redundant safety systems (tilt protection, emergency descent, self-locking door, e-stop) prioritize operator well-being.
-
Space-Saving Design: Unbeatable maneuverability in tight warehouse layouts.
-
Operator Comfort: Stable platforms and ergonomic controls for all-day efficiency.
-
Low Maintenance & Reliable: Robust electric drive system with diagnostic capabilities.
Ideal For: High-density warehousing, distribution centers, manufacturing parts picking, and any application requiring efficient, safe low-to-mid level order picking with exceptional reach.
