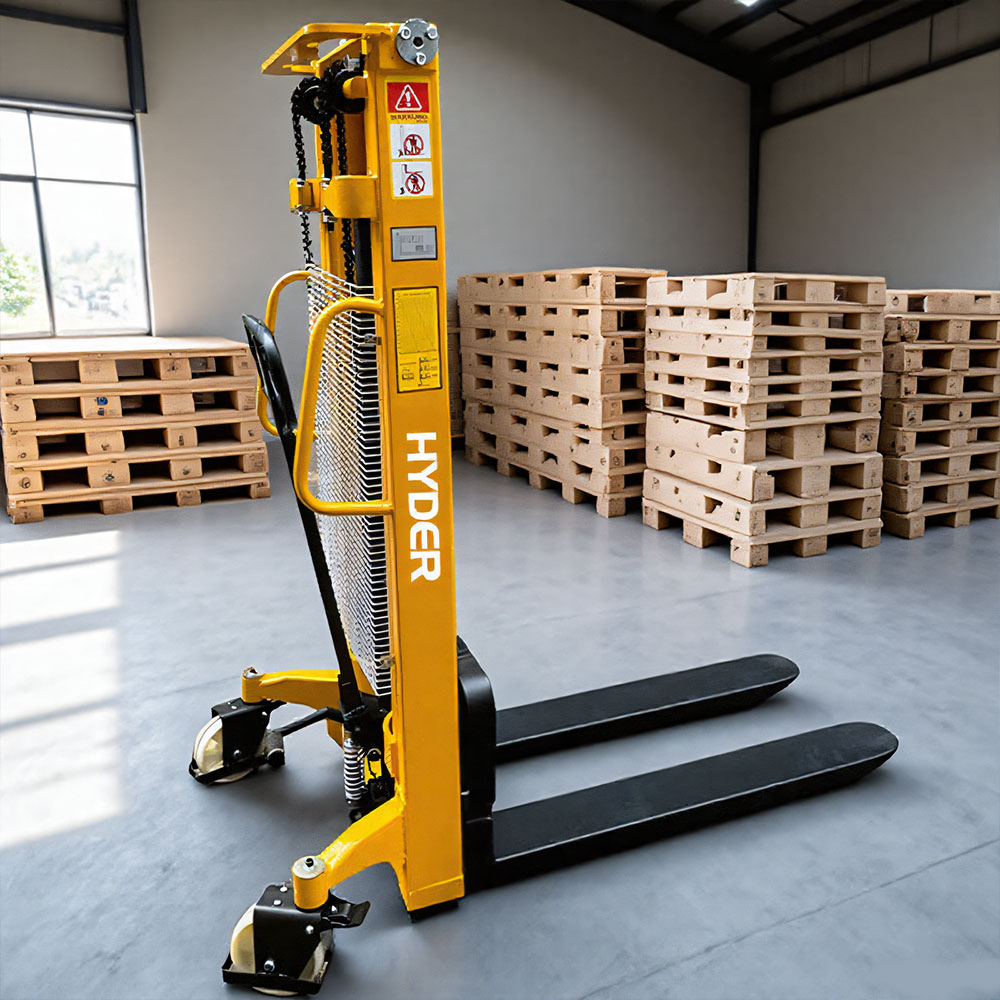

Manual Pallet Stacker 500kg 1000kg with Lifting Height Max 2.5m

Effortless Pallet Handling with Unmatched Durability

Our manual pallet stackers deliver robust lifting performance without electricity—perfect for warehouses, factories, and tight spaces. Choose from three models (HPT500, HPT1000, HPT1500) to match your load requirements, with lift heights up to 3.0 meters.

1. HPT500 – Compact & Lightweight (500kg Capacity)

Ideal for: Small businesses, retail storerooms, and light-duty applications.

Capacity: 500kg
Lifting Height: 1600mm
Fork Dimensions: 650mm (L) × 540mm (W)
Compact Design: Total length 1100mm, turning radius 1350mm
Weight: Ultra-lightweight for easy maneuvering.

Why Choose It?
✔ Fits narrow aisles | ✔ Low-effort hydraulic pump | ✔ Budget-friendly

2. HPT1000 – Versatile Mid-Range (1000kg Capacity)

Ideal for: Warehouses, loading docks, and medium-duty loads.

Capacity: 1000kg
Lifting Height Options: 1600mm / 2500mm / 3000mm
Fork Size: 1150mm × 560mm
Adjustable Width: 680mm (1600mm lift) / 760mm (2500mm+ lift)
Turning Radius: 1590mm–1600mm
Self-Weight: 188kg–297kg (varies by height)

Key Features:
✅ 3 Height Options – Optimize storage space.
✅ Reinforced Steel Frame – Durable for daily use.
✅ Ergonomic Handle – Reduces operator strain.

3. HPT1500 – Heavy-Duty Workhorse (1500kg Capacity)

Ideal for: Industrial sites, construction, and high-capacity needs.

Capacity: 1500kg
Lifting Height Options: 1600mm / 2500mm / 3000mm
Fork Size: 1150mm × 560mm
Stable Base Width: 760mm
Turning Radius: 1600mm
Self-Weight: 202kg–305kg (varies by height)

Why Buy This Model?
✔ Highest Capacity – Handles heavy loads effortlessly.
✔ Polyurethane Wheels – Protects floors and lasts longer.
✔ Low Maintenance – No batteries or motors.

Technical Comparison Table

Model	HPT500	HPT1000	HPT1500
Capacity	500kg	1000kg	1500kg
Max Height	1600mm	1600mm/2500mm/3000mm	1600mm/2500mm/3000mm
Fork Size	650×540mm	1150×560mm	1150×560mm
Turning Radius	1350mm	1590mm–1600mm	1600mm
Weight	Lightweight	188kg–297kg	202kg–305kg
