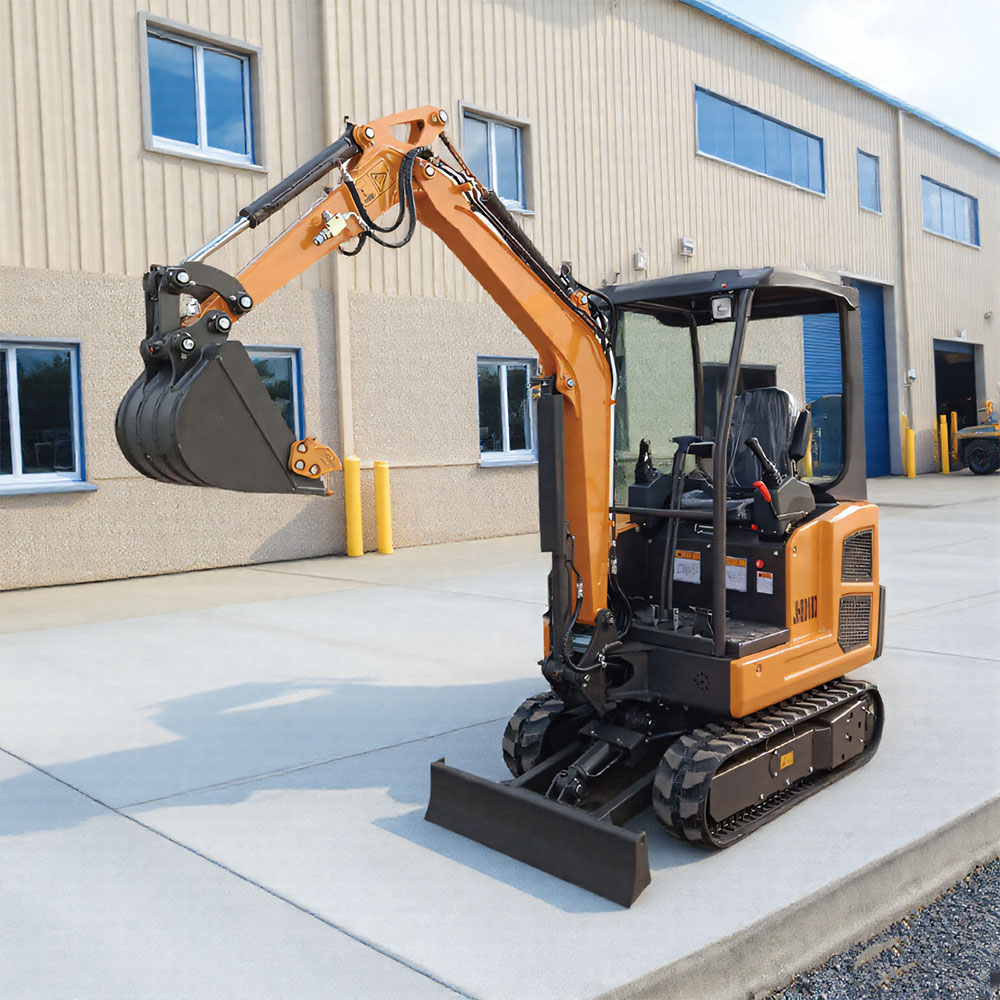

JH8018 Mini Excavator Crawler Type for Urban Digging Work

JH8018 Mini Excavator – Power Meets Precision for Tough Jobs

The JH8018 Mini Excavator is built for contractors who demand more power, deeper digging, and superior stability in compact spaces. With a 0.06 m³ bucket capacity, 18.4 kW engine, and 14 kN bucket force, this machine tackles urban construction, landscaping, and utility work with ease.

How JH8018 Helps Your Work

1. "I need more digging power in a small package."

✅ Solution: The JH8018 delivers 14 kN bucket force and 10 kN arm force—30% stronger than competitors in its class.

2. "My excavator struggles on slopes and rough terrain."

✅ Solution: With 35° gradeability, 210 mm ground clearance, and 18 MPa hydraulic pressure, it maintains stability on uneven ground.

3. "Transporting equipment is a hassle."

✅ Solution: Compact dimensions (3.65m length, 1.05m width) and 1000 mm tail swing fit easily on trailers.

4. "I need versatility for different jobs."

✅ Solution: Features like 75° left/45° right boom swing, 230 mm dozer lift, and 275 mm blade depth adapt to trenches, grading, and backfilling.

5. "Fuel costs eat into profits."

✅ Solution: The 3TE25 engine (18.4 kW @ 2350 rpm) balances power and fuel efficiency.

Technical Sheet – JH8018 Mini Excavator

1. General Specifications

Parameter	Value	Unit
Bucket Capacity	0.06	m³
Engine Model	3TE25	–
Engine Power	18.4 @ 2350	kW/rpm
Swing Speed	10–12	rpm
Max Gradeability	35	°
System Pressure	18	MPa

2. Digging Performance

Parameter	Value	Unit
Max Digging Height	3391	mm
Max Dumping Height	2290	mm
Max Digging Depth	2125	mm
Max Vertical Digging Depth	1771	mm
Max Digging Radius	3851	mm

3. Dimensions & Stability

Parameter	Value	Unit
Length × Width × Height	3655 × 1050 × 2232	mm
Tail Swing Radius	1000	mm
Track Width	820	mm
Ground Clearance	210	mm

4. Dozer Blade & Boom

Parameter	Value	Unit
Max Blade Lift	230	mm
Max Blade Cut Depth	275	mm
Boom Swing (Left/Right)	75° / 45°	–

Why Contractors Choose the JH8018

✔ Stronger Digging: 40% more force than standard mini excavators.
✔ All-Terrain Ready: High clearance and wide tracks for mud/slopes.
✔ Easy to Move: Fits through narrow gates (1.05m width).
✔ Multi-Tasker: Compatible with augers, breakers, and grapples.
