JH8015 Mini Excavator for Compact Home Use

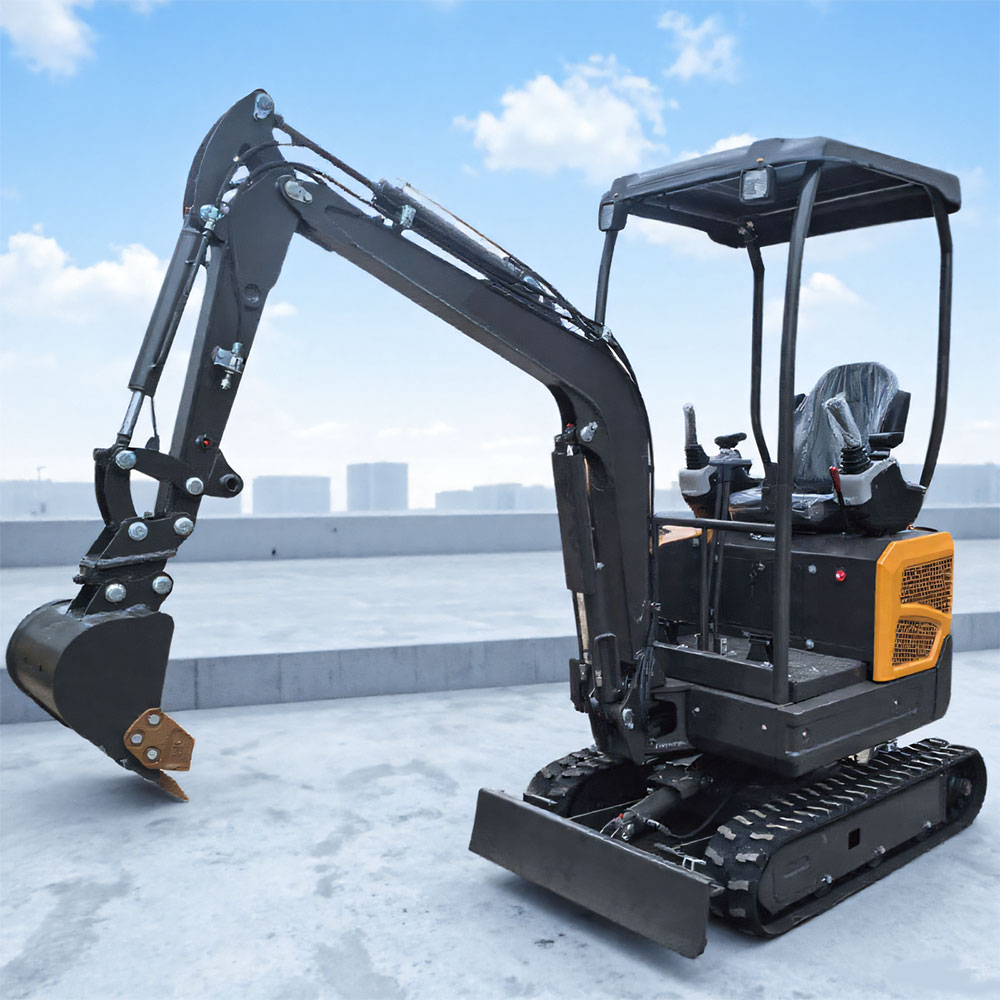

The JH8015 Mini Excavator is engineered for precision and efficiency in confined job sites. With a 0.025 m³ bucket capacity, 10.2 KW engine power, and 20 MPa hydraulic system, this excavator delivers robust performance for construction, landscaping, and utility projects. Its compact design and superior digging forces make it ideal for urban environments and challenging terrains.

Key Features & Benefits

✅ High Performance: Powered by a D722 engine (10.2 KW @ 2500 rpm) for reliable operation.
✅ Exceptional Digging Force: 9 kN bucket force and 5.5 kN arm force ensure efficient material handling.
✅ Compact Design: Tail swing radius of 655 mm and total width of 990/1300 mm for easy maneuverability.
✅ Wide Working Range:

Max digging height: 2961 mm
Max digging depth: 1953 mm
Max vertical digging depth: 1859 mm
✅ Sturdy & Stable: 30° climbing ability, 153 mm ground clearance, and 20 MPa system pressure for tough conditions.

Ideal Applications: Urban construction, trenching, agriculture, landscaping, and road maintenance.

Keywords: Mini excavator, compact excavator JH8015, small digger, construction machinery, D722 engine, hydraulic excavator, crawler excavator, digging equipment.

Technical Sheet – JH8015 Mini Excavator

1. General Specifications

Parameter	Value	Unit
Bucket Capacity	0.025	m³
Engine Model	D722	–
Engine Power	10.2 @ 2500	kW/rpm
Swing Speed	11–13	rpm
Max Gradeability	30	°
System Pressure	20	MPa

2. Digging Performance

Parameter	Value	Unit
Max Digging Height	2961	mm
Max Dumping Height	2083	mm
Max Digging Depth	1953	mm
Max Vertical Digging Depth	1859	mm
Max Digging Radius	3519	mm

3. Dimensions

Parameter	Value	Unit
Total Length (Transport)	3360	mm
Total Width (Transport/Work)	990/1300	mm
Total Height (Transport)	2290	mm
Tail Swing Radius	655	mm
Minimum Ground Clearance	153	mm
Wheel/Track Distance	790	mm

4. Dozer Blade Specifications

Parameter	Value	Unit
Max Lifting Distance	224	mm
Max Cutting Depth	237	mm

Why Choose the JH8015?

✔ Fuel-efficient and low-maintenance design.
✔ Easy to transport with compact dimensions.
✔ Operator comfort with a spacious cabin (2270 mm height).
✔ Versatile attachments for multiple applications.

This JH8015 Mini Excavator combines power, precision, and portability for demanding jobs. Perfect for contractors needing reliability in tight spaces!
