Hyder Self Loading Stackers 700kg Pallet lifter-Your Truck Partner

700KG SEMI ELECTRIC SELF LOADING

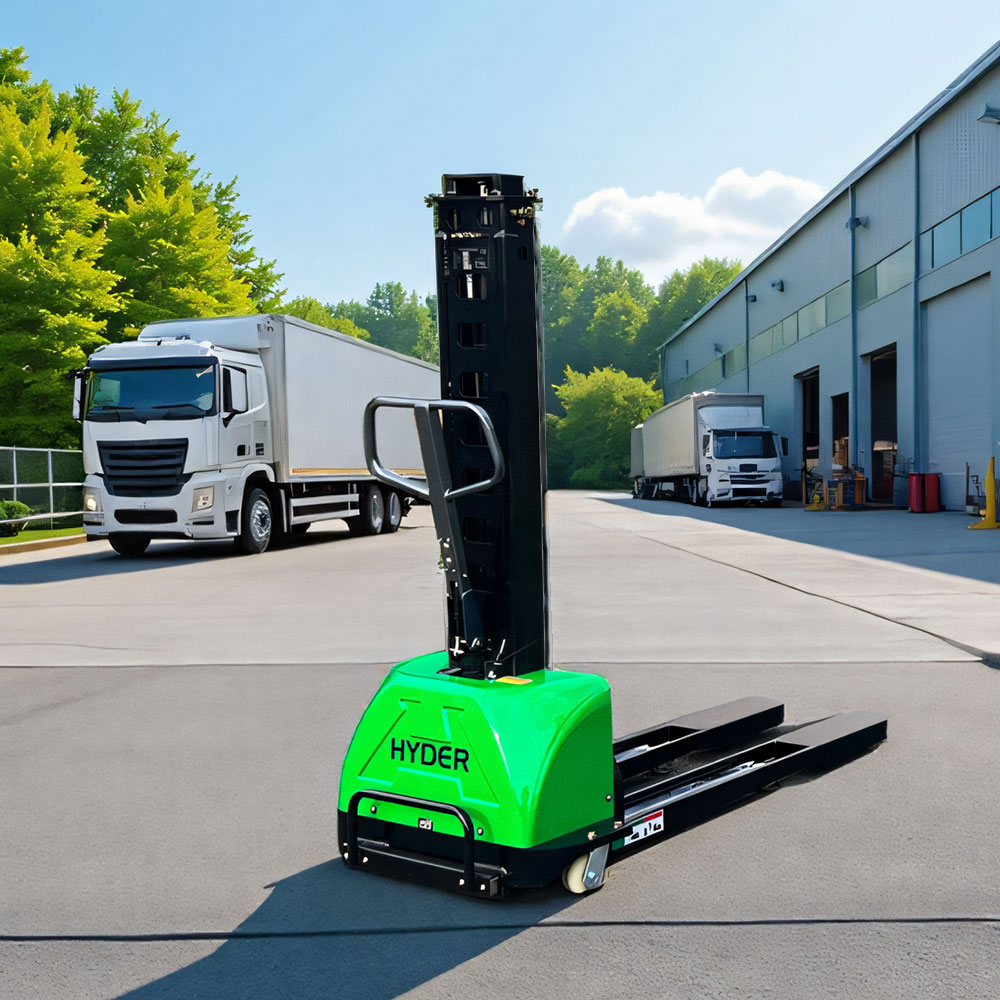

Hyder Self Loading Stackers 700kg Pallet lifter-Your Truck Partner

The HSLS700 shines where full-electric stackers struggle: Unloading 700kg machinery from a tilted truck bed, maneuvering pallets through cramped market stalls, or handling daily deliveries across uneven surfaces. Operators maintain complete control without sacrificing lifting power.

Perfect For:

  • Delivery drivers servicing multi-stop routes

  • Warehouse dock teams loading/unloading trucks

  • Retail stock rooms with confined spaces

  • Event logistics crews on uneven terrain

Model HYDER Code Unit　 HSLS500 HSLS700 HSLS1000


Features

 1.1 Type of Power Battery Battery Battery
1.2 Max. Load Q kg 500 700 1000
1.3 Load Center C mm 400 400 400
1.4 Wheelbase L0 mm 815 788 780
1.5 Wheel Distance: FR W1 mm 380 405 398/518
1.6 Wheel Distance: RR W2 mm 665/815 690/810 708/928
1.7 Type of Operation Walk Walk Walk


Size

 2.1 Front Wheel mm Φ70*60 Φ80×60 φ70×60
2.2 Universal Wheel mm Φ100*45 φ100×50 φ100×50
2.3 Middle Wheel mm Φ45*26 Φ65×30 Φ65×30
2.4 Length of Outriggers L3 mm 746 735 780
2.5 Max. Fork Height H mm 800/1000/1300/1600 800/1000/1300/1600 800/1000/1300/1600
2.6 External Distance Between Forks W3 mm 535/685 565/685 565/685
2.7 Length of Fork L2 mm 1150 1150 1150
2.8 Thickness of Fork B1 mm 60 60 60
2.9 Width of Fork B2 mm 155 190 193
2.10 Overall Length L1 mm 1570 1552 1544
2.11 Overall Width W mm 786/936 809/929 835/955
2.12 Overall Height (Mast Closed) H1 mm 1150/1307/1607/1907 1155/1355/1655/1955 1166/1366/1666/1966
2.13 Overall Height (Max. Fork Height) H1 mm 1870/2270/2870/3470 1875/2275/2875/3475 1850/2250//2850/450


Performance and Configuration

 3.1 Lifting speed mm/s 55 55 55
3.2 Descent speed mm/s 80 100 100
3.3 Lift Motor Power kw 0.8 0.8 1.6
3.4 Battery Voltage V 12 12 12
3.5 Battery Capacity Ah 52 52 52


Weight

 4.1 Battery Weight kg 13.5 13.5 13.5
4.2 Total Weight Include Battery kg 214/223/240//260 243/251//263/276 285/295/310/324

Upgrade Your Delivery Workflow Today!
The HYDER HSLS500 delivers lower operating costs, superior maneuverability, and reduced driver fatigue – all critical for efficient cargo movement. Request a live demo to experience its game-changing performance.
