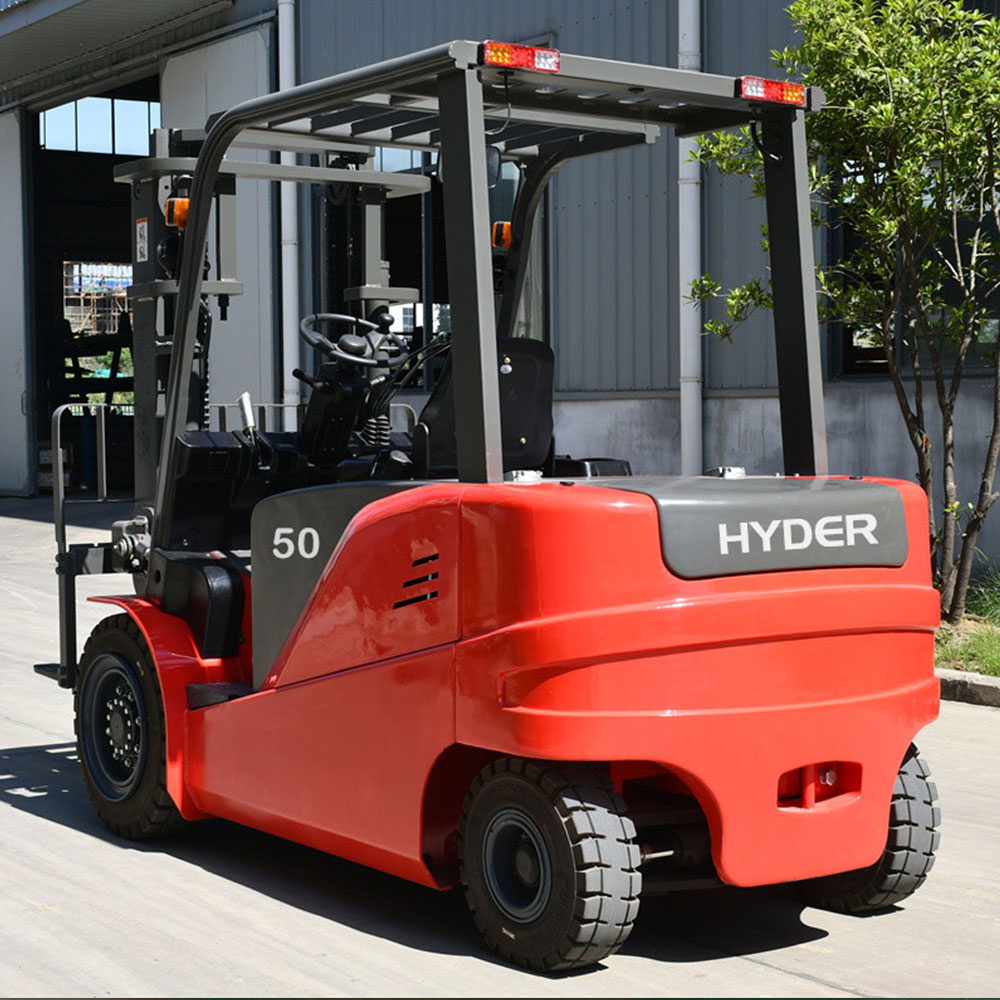

HYDER FB50C 5-Ton Electric Forklift: Heavy-Duty Efficiency with Zero Emissions

5,000kg Capacity | 80V Lithium Power | Warehouse-Optimized Design

Engineered for demanding industrial environments, the HYDER FB50C  electric forklift redefines heavy-material handling. With a robust 5,000kg load capacity and cutting-edge lithium-ion technology, this powerhouse delivers diesel-level performance with the sustainability and low operating costs of electric power—perfect for ports, warehouses, and manufacturing facilities.

---

Key Performance Advantages

1. Industrial-Grade Power & Stability

• 80V Lithium-Ion Battery Options: Choose between 700Ah (extended runtime) or 500Ah (rapid-charge) configurations.

• 22kW Lifting Motor + 18kW AC Drive Motor: Handles max loads at 15% gradeability and travel speeds up to 13.5 km/h.

• Triple-Mast Stability: 300mm load center support with reinforced chassis design (Net weight: 6,000kg).

2. Precision Maneuverability in Tight Spaces

• Ultra-Compact Turning Radius (2,750mm): Navigates narrow aisles effortlessly.

• Optimized Aisle Widths:

  • 4,450mm for 1200×1000 pallets (lengthways)

  • 4,650mm for 800×1200 pallets (lengthways)

• Air-filled tires (Front: 300-15; Rear: 700-12) absorb shocks on uneven surfaces.

3. Operator-Centric Design

• Ergonomic Seat Operation: Reduced fatigue during extended shifts.

• Clear Visibility Mast: Lowered height (2,300mm) to overhead guard (2,850mm).

• Intuitive AC Drive Controller: Smooth acceleration and regenerative braking.

4. Productivity-Boosting Specs

• Lift/Lower Speeds: 0.4 m/s lifting | 0.45 m/s lowering (unloaded).

• Max Lift Height: 4,200mm with extended mast.

• Hybrid Braking System: Hydraulic service brakes + mechanical parking brake for failsafe stopping.

---

Technical Highlights

---

Why Choose the FB50C?

• Cost Savings: 60% lower operating costs vs. diesel; no emissions fees.

• Low Noise: Ideal for indoor facilities and night shifts.

• Zero Maintenance Motors: AC drive system eliminates brushes/carbon.

• Future-Proof: Lithium batteries offer 2x lifespan vs. lead-acid.

*"The FB50c excels where brute strength meets precision: lifting 5-ton machinery onto trucks, stacking steel coils in manufacturing plants, or handling palletized goods in high-throughput DCs—all with whisper-quiet operation."*

Ideal For:

• Steel & lumber yards

• Container terminals

• Heavy equipment warehouses

• Automotive parts logistics

---

Upgrade to Electric Power Without Compromise!
The HYDER FB50C combines eco-efficiency, industrial durability, and operator comfort—setting a new standard for 5-ton material handling. Request a demo to experience its performance firsthand.

➤ Contact our team for volume pricing and custom configuration!
