It's designed and produced with advanced technology ,assembled with high-quality materials and famous brand parts,
strict quality management,comfortable to operations and seldom breakdown.
Used for high racking system and improve your storage efficiency.

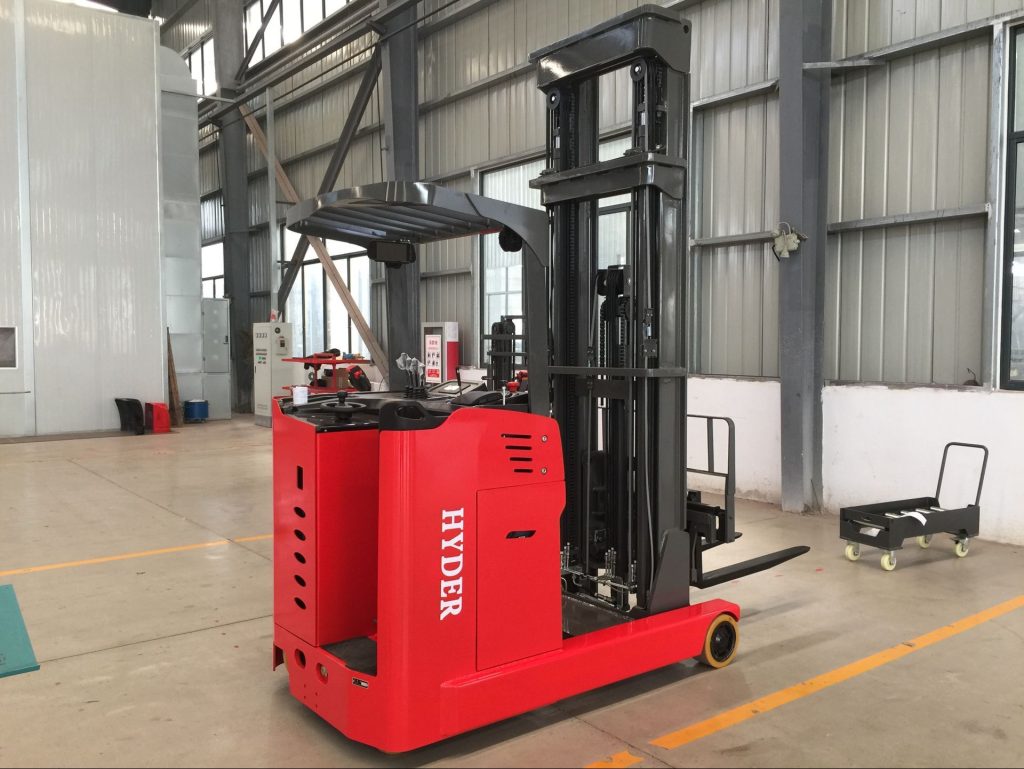

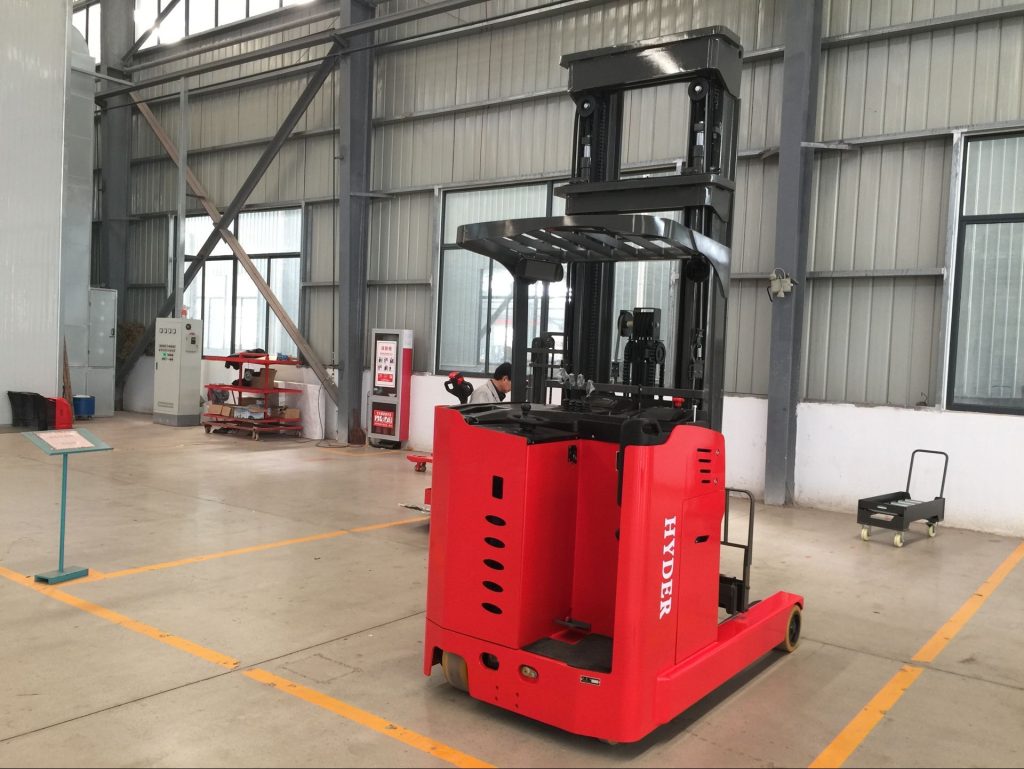

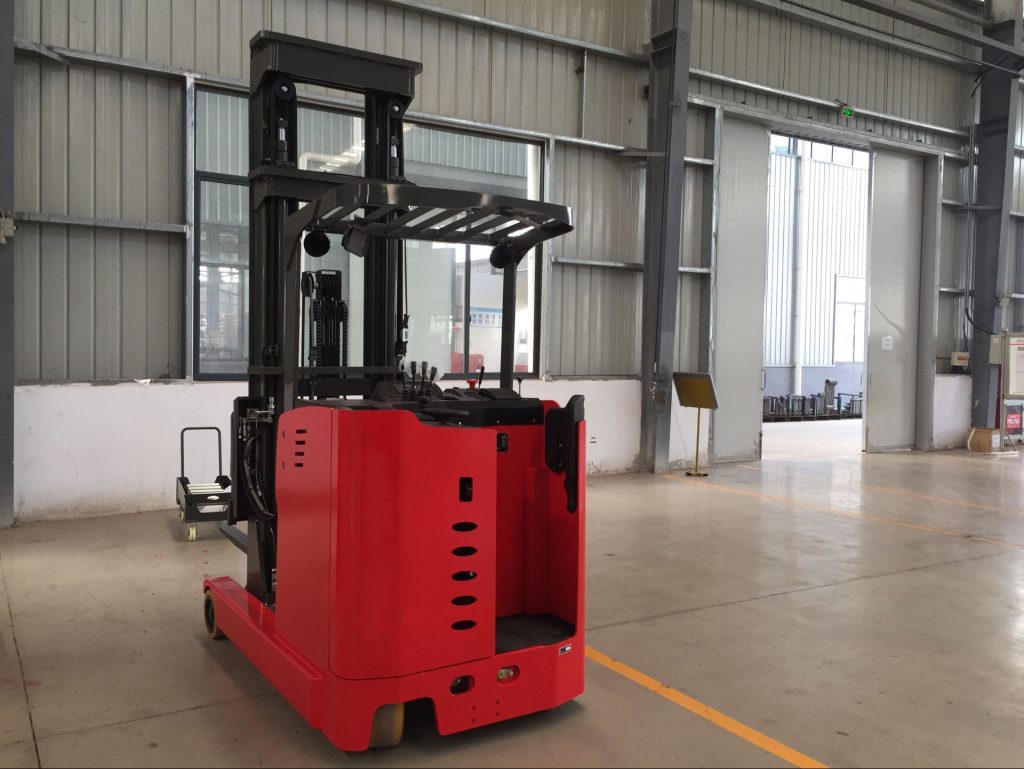

Key features of 48V standing on reach forklift:
- With capacity 1.5t to 2.5t max lifting 7.5
- Wide-angle view, high-strength shock absorptionmast
- USA Curtis brand drive control system
- Vertical Drive, electronic steering, portable, mute
- Integrated low noise hydraulic pump
- AC drive, No Carbon Brush, motor free-maintain
- Electromagnetic regenerative braking system
- Lifting limit, long life inductive switch
- Body shock absorption system
Specifications of 48V standing on reach forklift :
| Model | HTF15 | HTF20 | HTF25 | |
| Power unit | battery | |||
| Operation | stand-on | |||
| Load capacity | Q(kg) | 1500 | 2000 | 2500 |
| Load center | C(mm) | 500 | ||
| Tires tipe front/rear | solid PU/solid PU | |||
| Tires size front | mm | 267X 114 Φ267X 114 Φ267X 114 |
||
| Tires size rear | mm | 343X108 | ||
| Tires driving | mm | 180X76 Φ180X76 Φ180X76 |
||
| Tire no. front/rear(X=driving) | 2 / 1X / 2 | |||
| Mast forward/backward | a/β(。） | 3/5 | ||
| Lifting height | h1(mm) | 3000 | ||
| Free lift height | h2(mm) | 100 | ||
| lowest height | h3(mm) | 2085 | ||
| Highest height when lift | h4(mm) | 3920 | ||
| Highest of head guard | h5(mm) | 2320 | ||
| Min. Ground Clearance | h7(mm) | 80 | ||
| Total length | l1(mm) | 2284 | 2472 | 2472 |
| Reach distance | l2(mm) | 560 | 685 | 685 |
| Wheelbase | y(mm) | 1350 | 1700 | 1700 |
| Front overhang | x(mm) | 207 | 170 | 170 |
| Total width | b1/b2(mm) | 1098 | 1258 | 1258 |
| Tread front/rear | b3/b4(mm) | 978/680 | 1138/726 | 1138/726 |
| Fork size | l/e/s(mm) | 1070X 100X35 | 1070X 100X45 | 1070X 100X45 |
| Fork width(outside) | b5(mm) | 220〜662 | 247〜780 | 247〜780 |
| Aisle width(1000*1200pallet)pedal unfold/fold | Ast(mm) | 2690 | 2938 | 2938 |
| Aisle width(800*1200pallet)pedal unfold/fold | Ast(mm) | 2478 | 2740 | 2740 |
| Turning radius pedal(unfold/fold) | Wa(mm) | 1607 | 1965 | 1965 |
| Travelling speed | km/h | 7.5/8.5 | 7.5/8.5 | 7.5/8.5 |
| Lifting speed | mm/s | 110/200 | 110/200 | 110/200 |
| Gradeability(S25) | % | <10 | <10 | <10 |
| Driving moter type | AC | AC | AC | |
| Driving motor power(S2 60) | kw | 5.5 | 5.5 | 5.5 |
| Lifting motor type | DC | DC | DC | |
| Lifting motor power(S3 15%) | kw | 6.3 | 7.5 | 7.5 |
| Battery voltage/capacity | V/A | 48/300 | 48/400 | 48/420 |
