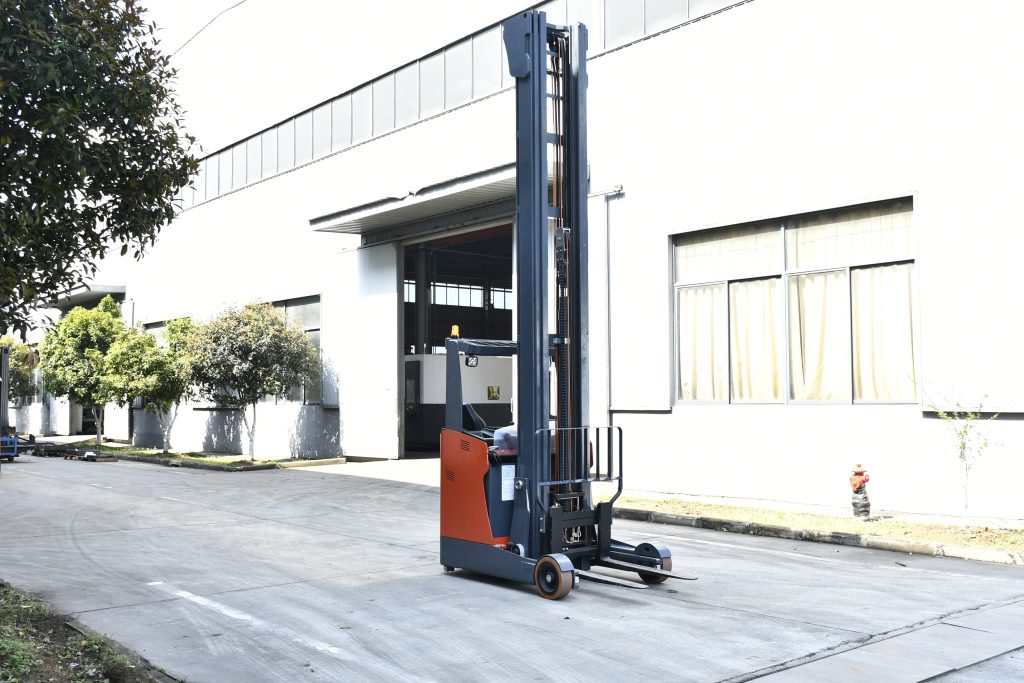

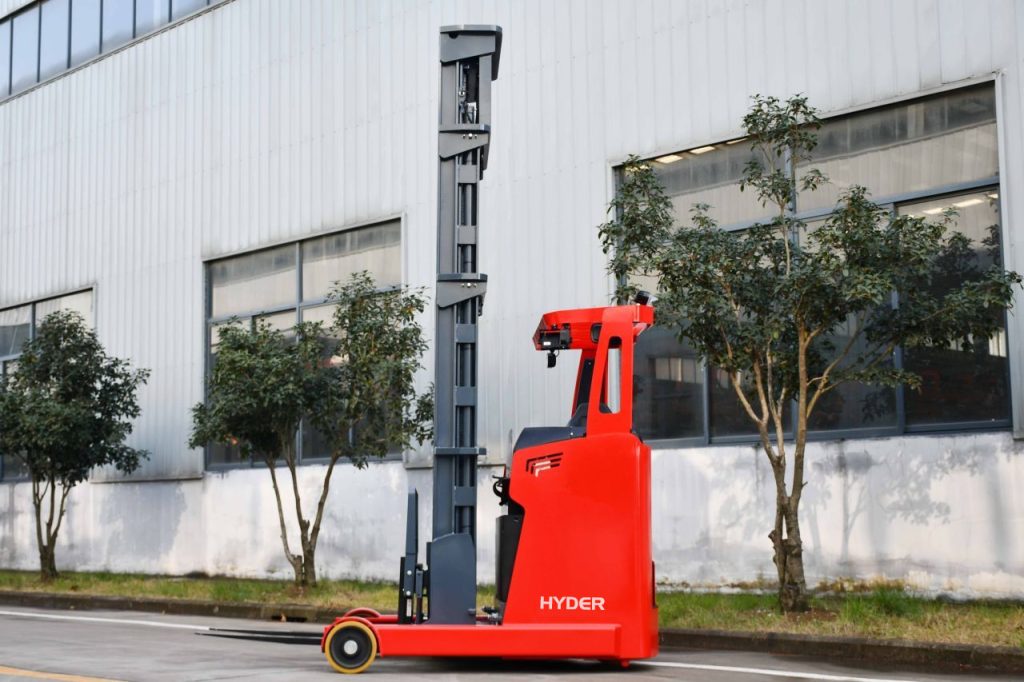

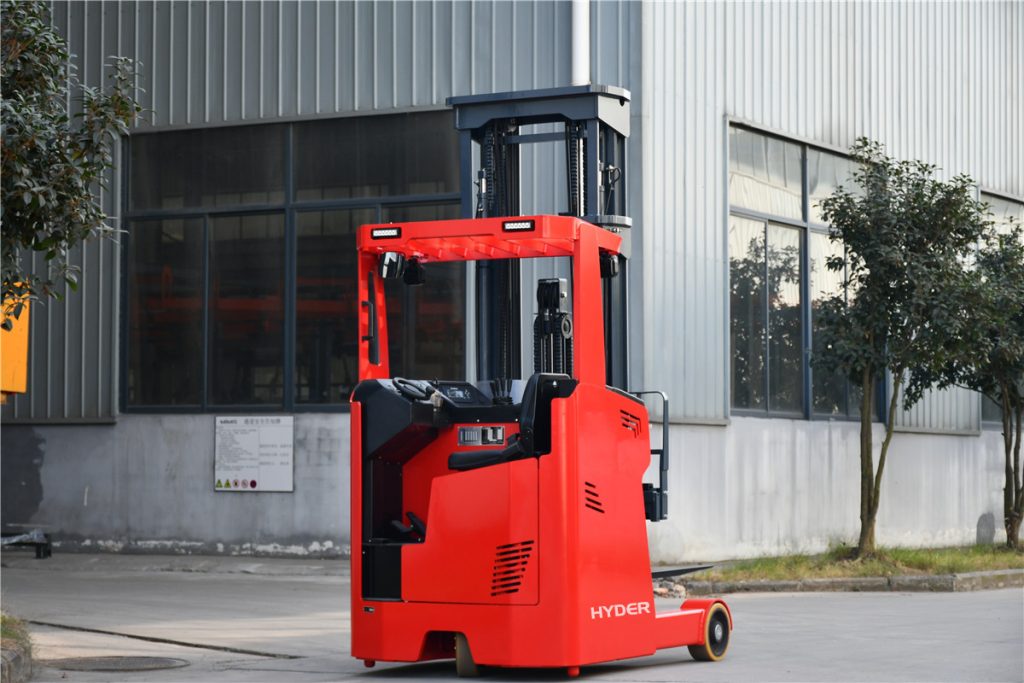

Hyder 48V seated high mast reach truck forklift

Hdyer 48V seated high mast electric reach truck forklift is designed and produced with advanced technology ,assembled with high-quality materials and famous brand parts,
strict quality management,comfortable to operations and seldom breakdown.
Used for high racking system and improve your storage efficiency.

Key features of 48Vseat high mast reach truck forklift:

With capacity 1.6t to 2.5t max lifting 12500mm
Wide-angle view, high-strength shock absorption mast
USA Curtis brand drive control system
South-central transmission
Electronic steering, portability, mute
Shimadzu brand low noise hydraulic pump, valve
AC drive, No Carbon Brush, motor free-maintain
Electromagnetic regenerative braking system
High and low voltage limit, electric overheat protection
Circuit fault detection, error code diagnosis
High capacity 48V lead acid battery and intelligent charger or lithium battery as option

Specifications of 48V seated high mast reach truck forklift

Standard
1.1	Brand		HYDER	HYDER
1.2	Model		HTFZ16H(High-performance mast)	HTFZ20H(High-performance mast)
1.3	Power type		Battery	Battery
1.4	Operation type		Seated	Seated
1.5	Rated capacity	Q(kg)	1600	2000
1.6	Load center	C(mm)	500	500
1.8	Front overhang	x(mm)	205	205
1.9	Wheelbase	y(mm)	1600	1600
Weight
2.1	Service weight(incl. battery)	kg	4530	4670
Wheel
3.1	Wheel type		PU	PU
3.2	Load wheel	mm	φ300×120	φ300×120
3.3	Drive wheel	mm	φ350×120	φ350×120
3.4	Auxiliary wheel	mm	/	/
3.5	Number of wheels,front/rear(x=drive wheel)		2/ 1X	2/ 1X
3.6	Wheel tread,drive side	b10(mm)	/	/
3.7	Wheel tread,load side	b11(mm)	1270	1270
Size
4.1	Fork tilt	α/β(°)	3/5	3/5
4.2	Mast closed height	h1(mm)	4154	4154
4.3	Free Lift height	h2(mm)	3504	3504
4.4	Lift height	h3(mm)	10000	10000
4.5	Mast extended height with load-backrest	h4(mm)	10930	10930
4.7	Overhead guard height	h6(mm)	2200	2200
4.8	Pedal height	h7(mm)	376	376
4.19	Overall length	l1(mm)	2496	2496
4.21	Overall width	b1/b2(mm)	1270/1390	1270/1390
4.22	Fork size	l/e/s(mm)	1070×122×40	1070×122×40
4.24	Fork carriage width	b3(mm)	1090	1090
4.25	Fork outside width	b5(mm)	266-725	266-725
4.26	Inner leg width	b4(mm)	990	990
4.28	Reach stroke	l4(mm)	617	617
4.31	Mast ground clearance	m1(mm)	75	75
4.34.1	Aisle width for pallet 1000*1200mm(C=500mm)	Ast(mm)	2912	2912
4.34.2	Aisle width for pallet 800*1200mm(C=600mm)	Ast(mm)	2956	2956
4.35	Turning radius	Wa(mm)	1872	1872
Function
5.1	Driving speed(load/unload)	km/h	8.5/10	8.5/10
5.2	Lifting speed(load/unload)	mm/s	200/300	260/360
5.3	Lowering speed(load/unload)	mm/s	300/250	300/250
5.8	Max.gradeability(load/unload)	%(tanθ )	≤10	≤10
5.10	Brake type		Mechanical	Mechanical
Drive
6.1	Driving Motor(S2-60min)	kw	5.5	5.5
6.2	Lifting Motor(S3-15%)	kw	8.6	12.8
6.4	Battery voltage/capacity	V/Ah	48/420	48/560
