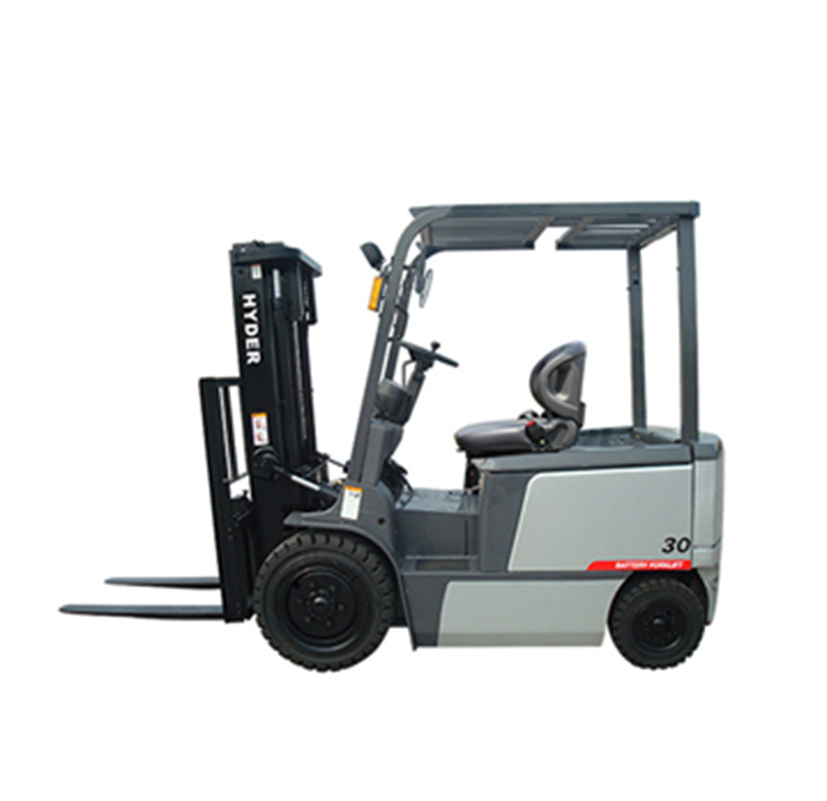

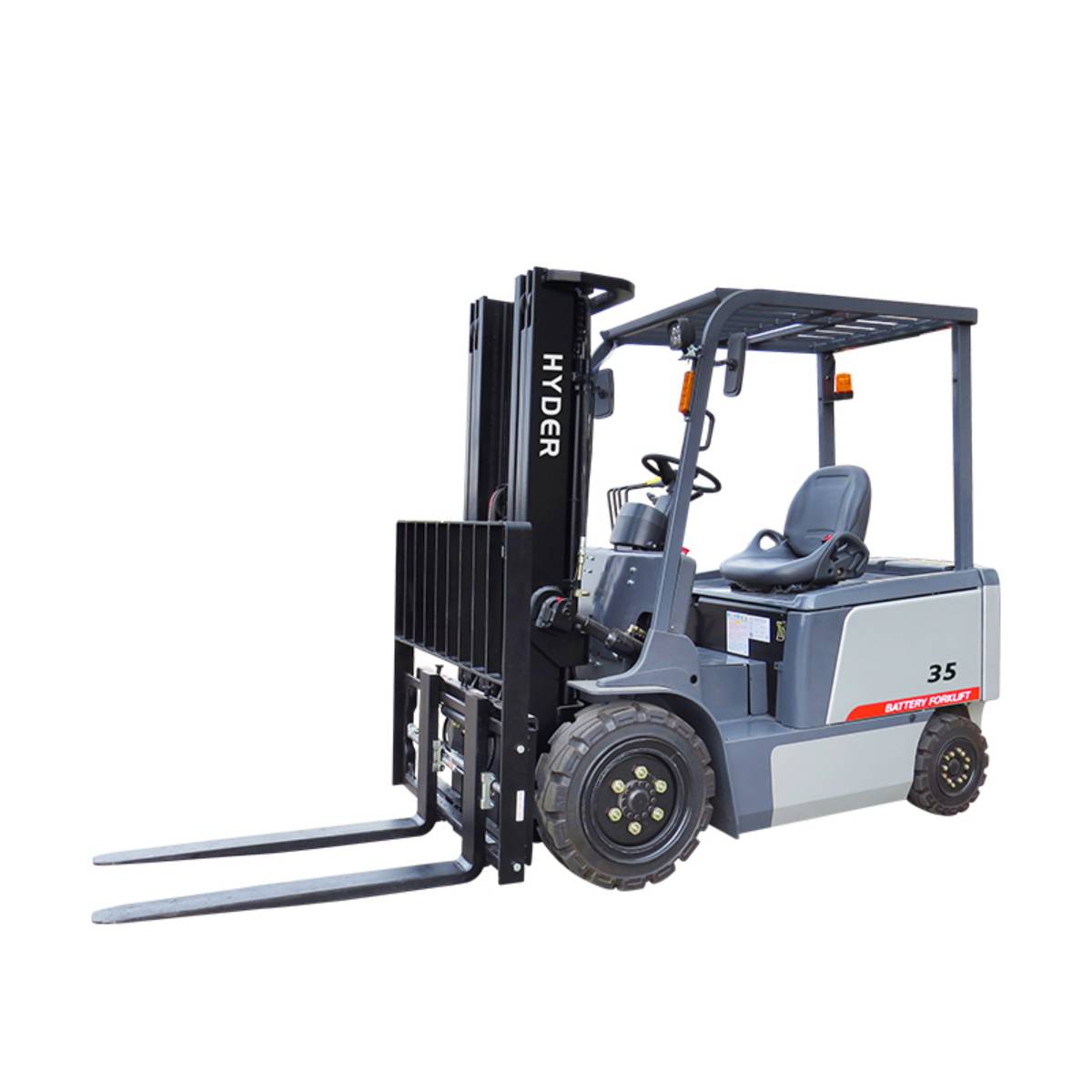

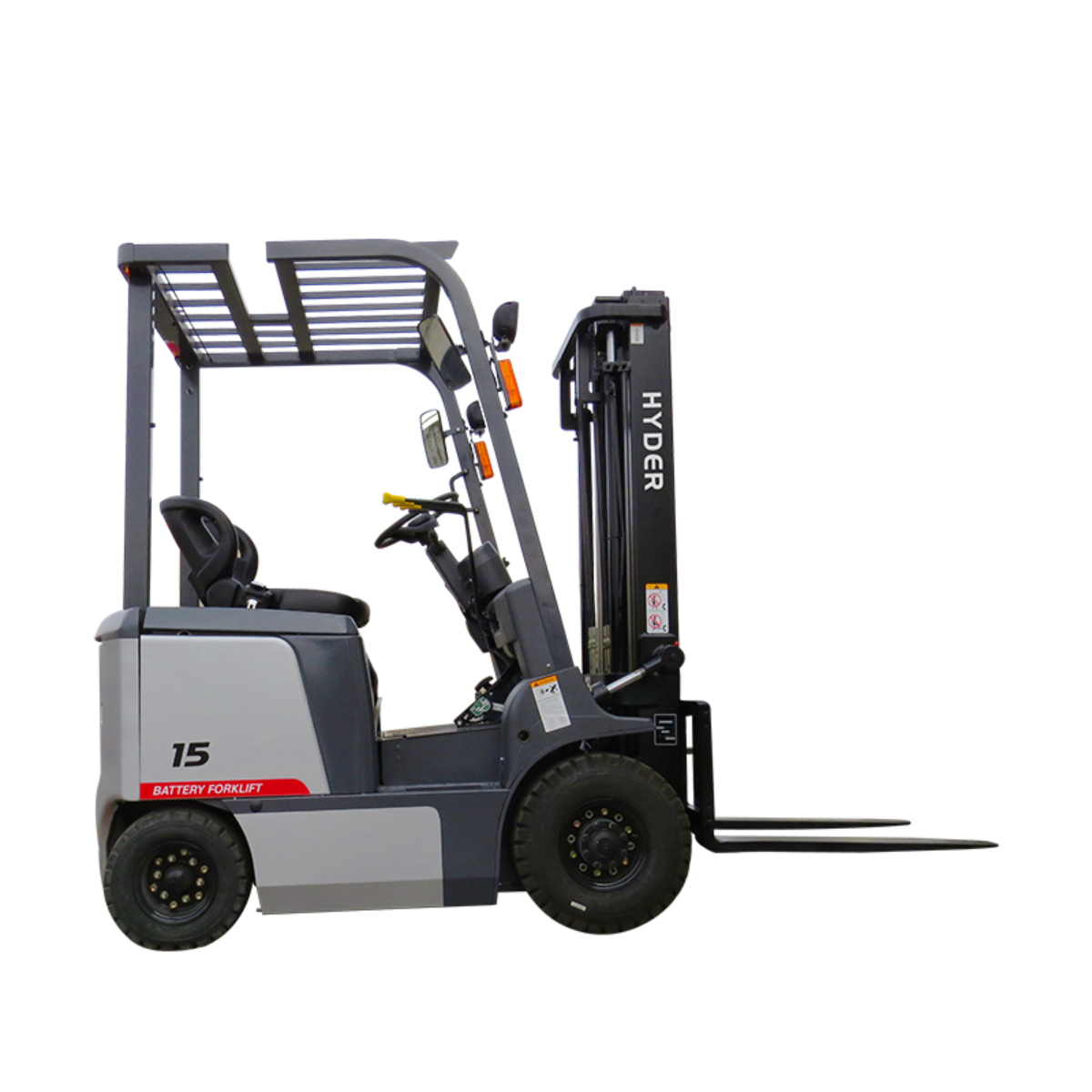

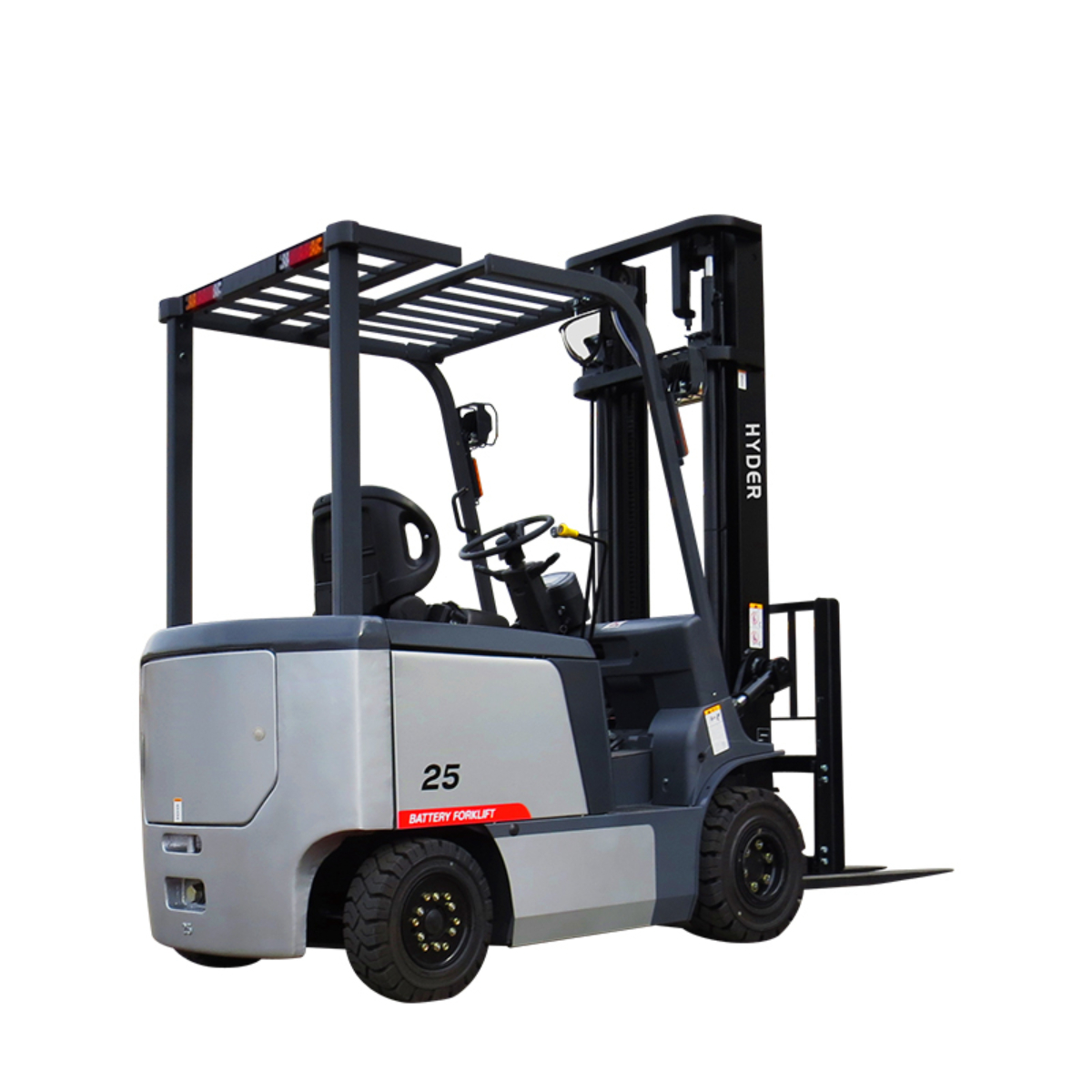

Parameters of this CE Certificated Counterbalanced Electric Fork Lift

1) With world-class forklift design concept and style.
2) Only with high-quality materials and famous brand parts such as the forklift truck with Bao steel for lifting system and structure. With American Curtis controller, Japanese NOK oil seals, NSK bearing, Shimadzu pump and valve, Eaton or gates hose, Toyota type seat with safety belt, Cascade side shifter, Led front and rear lights.
3) Only a specialized engineering team and rich experienced operators for research development and production.
4) The smaller turning radius to sure it can be operated in narrow spaces.
5) Firm mast and strong structure to sure operator safety.

Manufacturer	--	--	HYDER	HYDER	HYDER	HYDER
Model	--	--	FB15	FB20	FB25	FB30
Load capacity	--	kg	1500	2000	2500	3000
Load center	--	mm	500	500	500	500
Power unit	Battery / Diesel / Gasoline	--	Battery	Battery	Battery	Battery
Operator type	--	--	Driver / seat	Driver / seat	Driver / seat	Driver / seat
Tire type	Front / Rear	--	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Wheel (X=driven)	Number      Front / Rear	--	2X / 2	2X / 2	2X / 2	2X / 2
Max. lifting height	--	mm	3000	3000	3000	3000
Free lift	--	mm	155	160	160	165
Fork size	L*W*T	mm	920*100*35	1070*122*40	1070*122*40	1070*125*45
Tilt range	Mast forward / backward	deg	6 /12	6 /12	6 /12	6 /12
Overall length(without fork)	--	mm	1955	2245	2285	2510
Total width	--	mm	1070	1150	1150	1225
Mast height (fork lowering)	--	mm	1995	1995	1995	2075
Overall height fork raised	With backrest	mm	4030	4030	4030	4250
Height to head guard	--	mm	2100	2100	2145	2190
Turning raduis(outside)	--	mm	1780	1980	2000	2140
Load distance	--	mm	375	12.5	12.5	12.5
Min. right angle stacking aisle	Not add load length & clearence	mm	2155	3440	3820	4660
Gradeability	Full load	%	15	955 / 950	955 / 950	1000 / 950
Truck weight  (with standard battery)	--	kg	2690	Hydraulic-foot pedal	Hydraulic-foot pedal	Hydraulic-foot pedal
Wheelbase	--	mm	1250	Manual	Manual	Manual
Battery	Voltage / Capacity	v-ah/5hr	48V-400	48V-450	48V-565	72V-480
	Weight (standard)	kg	735	825	945	1220
Electric motor	Driving motor	kw	8	11	11	16.6
	Hydraulic motor	kw	8.2	8.6	8.6	10
Control type	--	--	AC motor	AC motor	AC motor	AC motor
Operating pressure	Hydraulic system pressure	kg/cm²	145	175	175	175
