HTB15Y HTB20Y Economical Solution to Standing on Electric Stackers

Electric stackers

HTB15Y HTB20Y Economical Solution to Standing on Electric Stackers

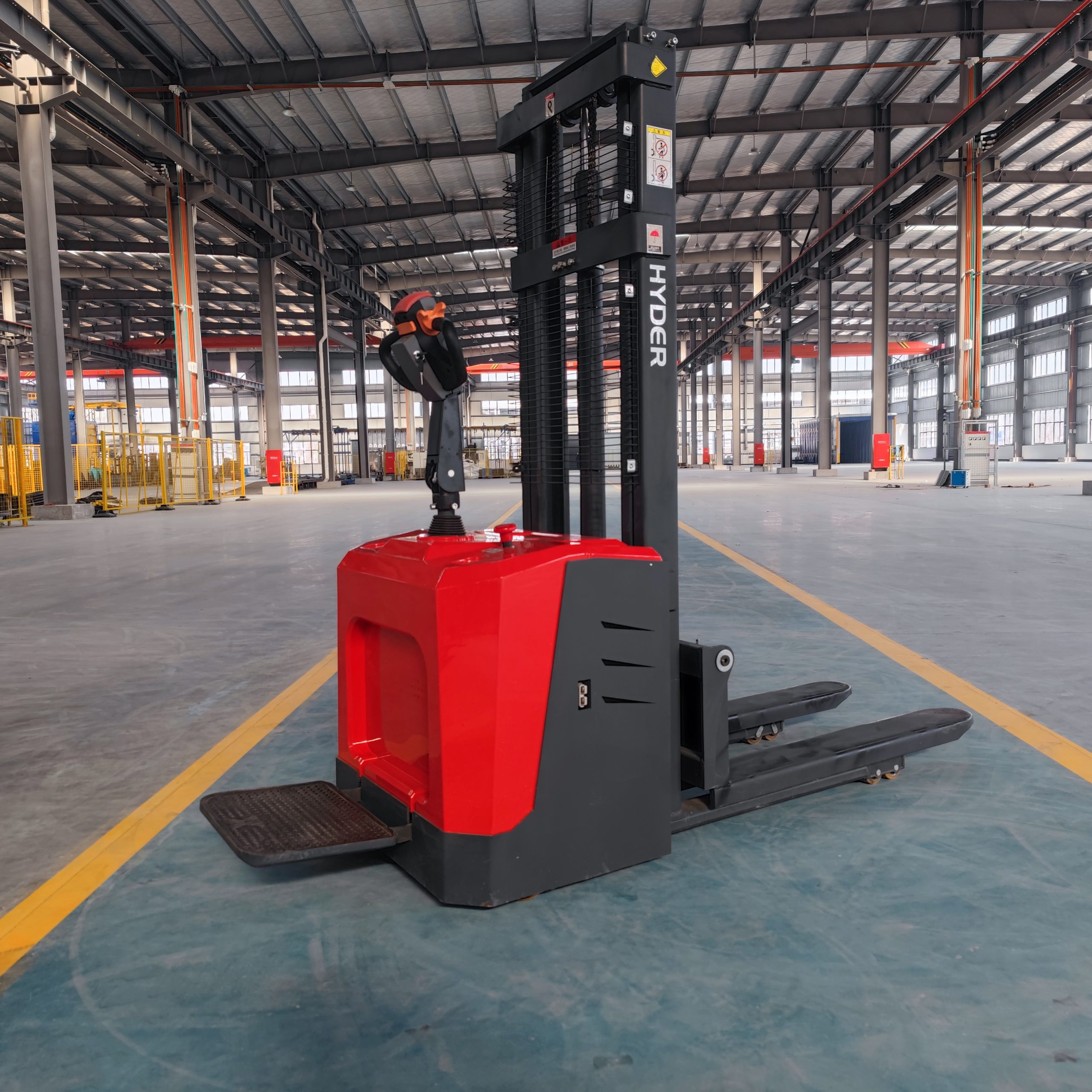

Hyder HTB Y series electric stackers are one of economical solution to  ride on stackers. Compare to our high end model, this Y series shares more advantages on its customized options and prices. There are 24v 120AH and 24v 150aH or Lithium battery options.

NO Items Unit Specs
01 Power type   Battery
02 Rated load capcity kg 1500
03 Load centre mm 500
04 Operate type   Standing on
05 Total length(pedal closed) mm 2030
06 Total width mm 860
07 Mast closed height mm 2080
08 Lifting height mm 3000
09 Mast extended height mm 3580
10 Min working aisle width 1000*1200mm pallet(1200 along the fork) mm 2500
11 Fork Min ground clearance mm 85
12 Min. Turning radius mm 1612
13 Fork side（L*W*H） mm 1100*160*55
14 Fork outer width mm 550/680
15 Max lifting speed（no load） mm/s 100
16 Max lifting speed（full load） mm/s 50
17 Max driving speed（no load） Km/h 5.5
18 Max driving speed（full load） Km/h 4.5
19 Max gradeability(full/no load） % 3.0/5.0
20 Driving motor KW DC0.75
21 Lifting motor kw DC2.2
22 Total weight (battery included) kg 680
23 Battery  capacity V/AH 24V120AH
24 Charger V/A 24V15A
25 Steel type   Manganese C-shaped steel
26 Bearing wheel size（front ） mm 80*70
27 Balance wheel size（back） mm 125*50
28 Controller   Chinese brand
29 Service Brake   Electric magnetic
