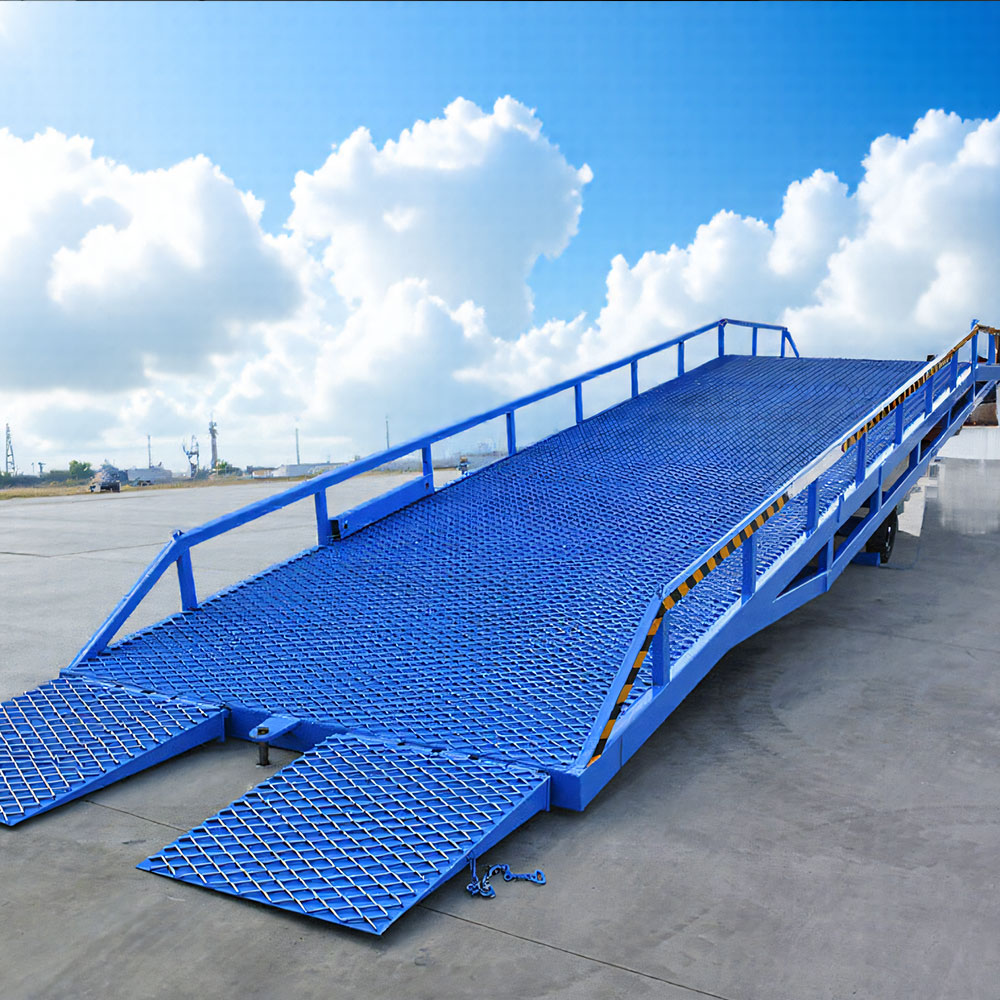

Heavy-Duty Mobile Loading Ramps (Dock Bridges) – 8,000kg to 12,000kg Capacity

Seamless Truck Loading/Unloading for Warehouses & Logistics Centers

Our mobile loading ramps (dock bridges) provide safe, efficient transitions between ground level and truck beds, handling extreme loads up to 12,000kg. With manual hydraulic lifting and ultra-stable platforms, these ramps are ideal for warehouses, freight yards, and industrial facilities needing flexible, heavy-capacity loading solutions.

Key Features & Benefits

✅ Unmatched Load Capacity

Three models: DCQY8-0.8 (8,000kg), DCQY10-0.8 (10,000kg), DCQY12-0.8 (12,000kg).
Dual hydraulic cylinders (10T+ models) for smooth, heavy-load lifting.

✅ Industrial-Grade Construction

Reinforced steel frame: 180×80×4mm main beams + 100×50×3mm sub-beams.
Anti-slip diamond mesh surface (8mm thickness) for secure footing.
300mm safety guardrails (50×50×3mm steel tubing).

✅ Optimized for Efficiency

Large platform: 2,500×1,900mm loading area + 2,000×350mm bridge plate.
Adjustable height range: 1,000–1,700mm to match various truck/trailer heights.
Mobility: 600-9 solid tires for easy repositioning.

✅ Safety & Reliability

Manual hydraulic operation – No power required, minimal maintenance.
Sturdy wheel chocks integrated for ramp stability during use.

Technical Specifications

Model	DCQY8-0.8	DCQY10-0.8	DCQY12-0.8
Capacity	8,000kg	10,000kg	12,000kg
Platform Size	2,500×1,900mm	2,500×1,900mm	2,500×1,900mm
Lift Range	1,000–1,700mm	1,000–1,700mm	1,000–1,700mm
Bridge Plate	2,000×350mm	2,000×350mm	2,000×350mm
Tires	600-9 solid	600-9 solid	600-9 solid
Hydraulics	2×80×50mm cylinders	2×80×50mm cylinders	2×80×50mm cylinders

Why Choose Our Mobile Loading Ramps?

✔ No Dock Required – Flexible deployment anywhere.
✔ Heavier Loads – Outperforms standard dock levelers.
✔ All-Weather Use – Corrosion-resistant materials.

Perfect For:
