HYDER HSLF Series Electric Self-Loading Stackers: 1300kg & 1500kg Lithium-Powered Efficiency

Maximize Space, Minimize Effort with HYDER's Compact Electric Stackers

Introducing the HYDER HSLF Series – your ultimate solution for effortless material handling in tight spaces. Our 1000kg (HSLF1300) and 1500kg capacity full-electric self-loading stackers combine robust lithium-ion power, innovative design, and unparalleled maneuverability. Engineered for warehouses, trucks, and retail environments, these stackers deliver CE-certified safety and exceptional productivity.

Key Features & Benefits:

  1. Powerful & Maintenance-Free: Equipped with 48V DC brushless control systems for 20% greater energy efficiency vs. brushed motors. Zero carbon brush replacements mean lower lifetime costs.

  2. Ultimate Maneuverability: Proprietary shock-absorbing universal wheels and a patented active middle wheel design ensure superior stability on asphalt, concrete, slopes, and uneven surfaces. Wheelbase: 922mm.

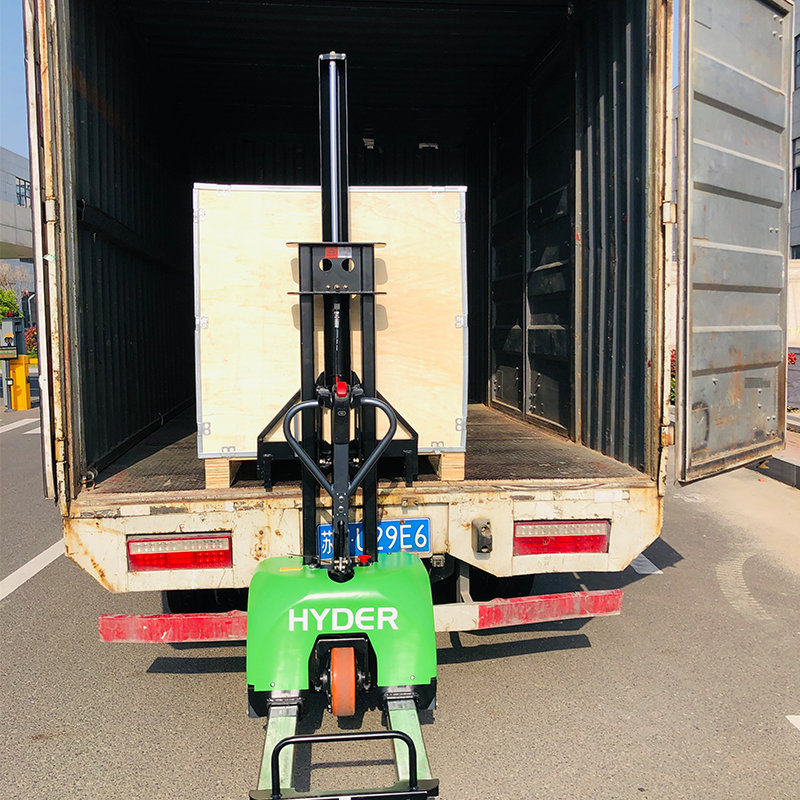

  3. Space-Saving Design: Compact footprint (L1603mm x W852mm) and revolutionary free lift function. Lift pallets clear off the ground (up to 400mm load center) without increasing overall height (H1 down to 1155mm), perfect for low-clearance trucks & containers.

  4. Precision Lifting Options: Choose your optimal fork height (800mm / 1000mm / 1300mm / 1600mm). Features height-activated speed limiting for enhanced safety during high lifts (Max H1 up to 3475mm).

  5. Uncompromised Safety: Anti-detachment middle wheels prevent accidental rolling off ramps/trucks. Reinforced chrome-plated outriggers (L3: 770mm) offer superior wear resistance and corrosion protection.

  6. Superior Build Quality: Constructed with high-strength alloy steel for exceptional durability and longevity. Fork dimensions: L1195mm x W190mm x T70mm.

  7. Long-Lasting Lithium Power: 48V Lithium-ion battery options (15Ah/30Ah/30Ah Quick-Change) provide extended runtime. Energy-recovery descent system uses gravity, saving power. Achieves speeds up to 3.5 km/h (unloaded).

  8. Optimized Logistics: Modular disassembly allows packing 36 units into a single 20ft shipping container – drastically reducing transport costs.

Model HSLF1500 Code Unit HYDER
Features 1.1 Type of Power     Li-Ion Battery
1.2 Max. Load Q kg 1500
1.3 Load Center C mm 400
1.4 Wheelbase L0 mm 924
1.5 Wheel Distance: FR W1 mm 405/525
1.6 Wheel Distance: RR W2 mm 802
1.7 Type of Operation     Walk
Size 2.1 Front Wheel   mm 2- 80* 70/2- 80* 60
2.2 Universal Wheel   mm 75* 45
2.3 Middle Wheel   mm 45 *30
2.4 Driving wheel   mm 185 *70
2.5 Middle Wheel Position L4 mm 158
2.6 Length of Outriggers L3 mm 780
2.7 Max. Fork Height H mm 800/1000/1300/1600
2.8 External Distance Between Forks W3 mm 565/685
2.9 Length of Fork L2 mm 1250
2.10 Thickness of Fork B1 mm 80
2.11 Width of Fork B2 mm 190
2.12 Overall Length L1 mm 1657
2.13 Overall Width W mm 852
2.14 Overall Height (Mast Closed) H1 mm 1163/1363/1663/1963
2.15 Overall Height (Max. Fork Height) H1 mm 1861/2261/2861/3461
Performance and Configuration 3.1 Lifting speed   mm/s 55
3.2 Descent speed   mm/s 100
3.3 Lift Motor Power   kw 2.0
3.4 Driving Motor Power   kw 0.8
3.5 Max. speed(Turtle speed / full-load)   km/h 1/3.5
3.6 Grade Ability(Full-load/NO-load)   % 5/10
Battery Voltage   V 48
3.8 Battery Capacity   Ah 15/ 30/ QUICK CHANGE 30
Weight 4.1 Battery Weight   kg 6/10/10
4.2 Total Weight Include Battery   kg 370/380/390/405
