Description:
- Model:NA30
- Load capacity: 3000kgs
- Minimum stacking aisle width: 2.1m
- Max lifting height:15m
- Type: Seated on type
- Overall size:2780*1240*2270(overhead guard height)mm
- Battery:80V500Ah lead acid or lithium battery

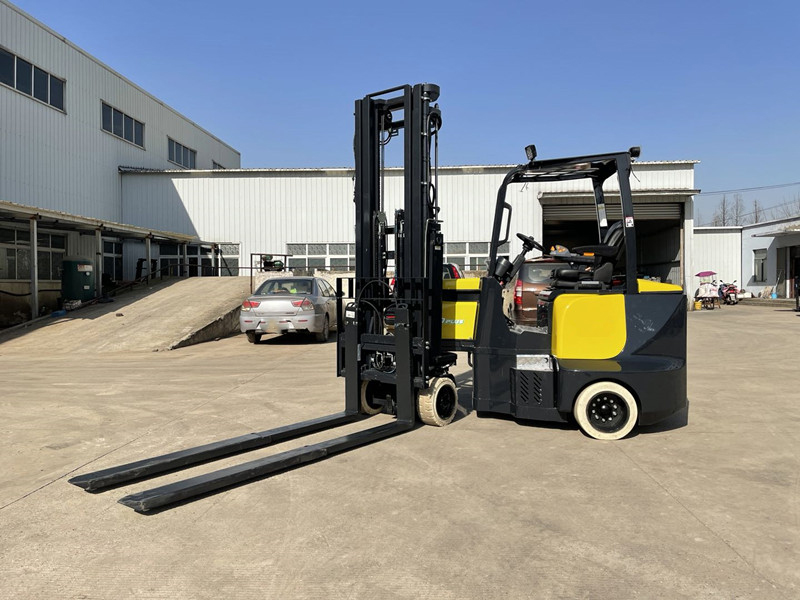

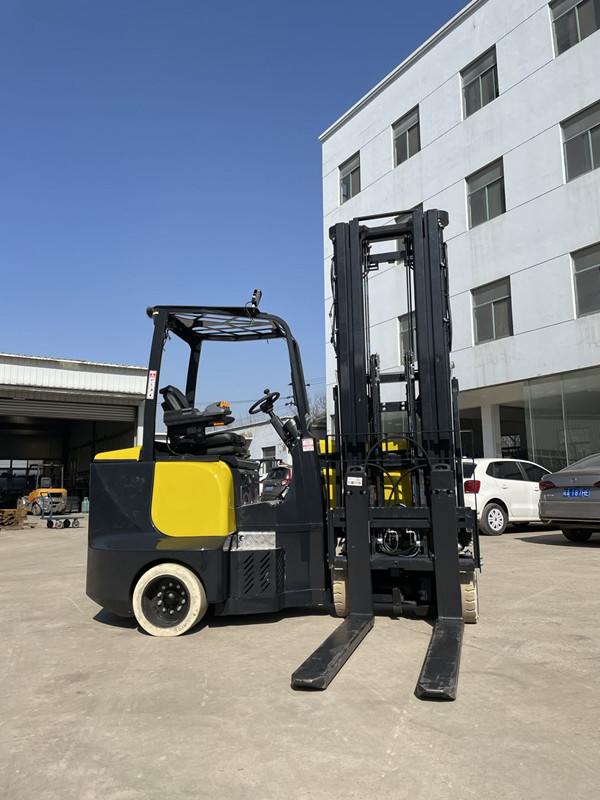

The electric articulated forklift is designed for faster and more efficient loading and unloading goods outdoor and indoors. It performs continuous operations across unloading, transport, and warehouse stacking, eliminating the need to switch vehicles.
Specifications:
| MODEL | NA30 | |
| Technical Specification | Unit | Electric |
| Rated Capacity | kg | 3000 |
| Lift height | mm | 12000 |
| Mast closed height | mm | 5465 |
| Free lift | mm | 4586 |
| Overall length | mm | 2780 |
| Ground clearance | mm | 50 |
| Overhead guard height | mm | 2270 |
| Chassis width rear | mm | 1600 |
| Chassis width front | mm | 980 |
| Load center | mm | 600 |
| Wheel base | mm | 1735 |
| Seat height | mm | 1220 |
| Mast tilt(back/fwd） | 。 | 3/1 |
| Mast rotate angle (left/right) | 。 | 220 |
| Ground speed | Km/h | 16 |
| Lift speed(load/unload) | m/s | 0.44/0.50 |
| Front tyre size | mm | 412*174 |
| Rear tyre size | mm | 457*170 |
| Grade ability(load/unload) | % | 18/20 |
| Battery voltage/capacity | V/Ah | 80v/500ah |
| Weight of truck | kg | 8350 |
| Traction motor | AC | 19.5kw |
| Lifting motor | AC | 15kw |
| Transfer aisle width | mm | 2700 |
