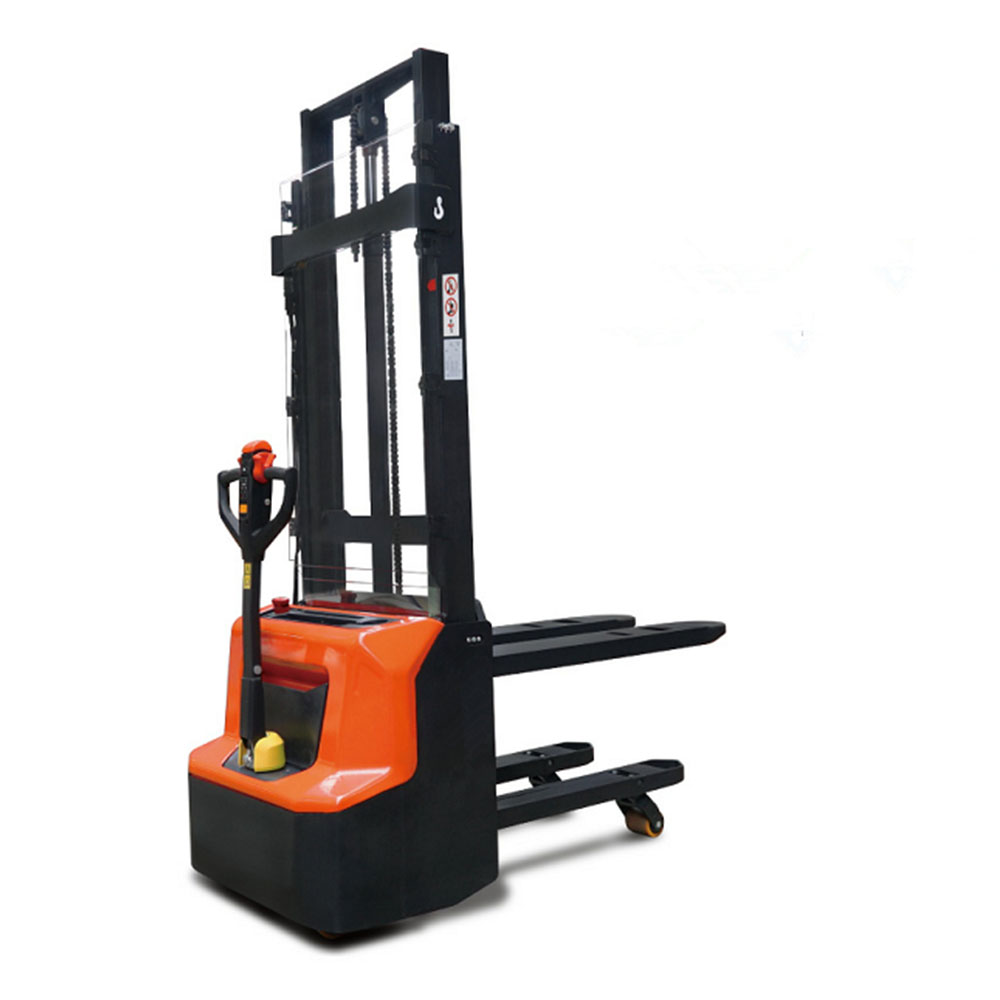

Customized Double Lift Electric Stackers 1.5ton 2ton

Double Lift Electric Stackers: Double the Pallets, Double the Efficiency

PS Series: High-Capacity Dual-Pallet Handling for Demanding Warehouses

Engineered to revolutionize material handling efficiency, the PS Series Double Lift Electric Stackers (PS12N/PS16N/PS20N) empower operators to transport two pallets simultaneously – slashing handling time by 50% while maximizing vertical storage. With lift heights up to 5.43m and capacities from 1.2T to 2.0T, these battery-powered workhorses deliver unmatched productivity in narrow-aisle warehouses, distribution hubs, and manufacturing plants.

Why Choose Double Lift Technology?

✅ 2x Productivity Boost

Lift and transport dual pallets (1,000x1,200mm or 800x1,200mm) in one trip
Ideal for high-volume operations: loading docks, cross-docking, batch picking

✅ Precision Vertical Handling

Free Lift Heights up to 1,820mm: Access pallets under conveyors/mezzanines
AC-Speed Control: Smooth acceleration (0.09–0.28 m/s) with electromagnetic braking

✅ Narrow-Aisle Agility

Tight Turning Radius (1,380–1,550mm)
Compact Width (790mm) for aisles as narrow as 2,230mm

✅ Industrial-Grade Durability

Polyurethane Tires: Zero-maintenance traction on concrete
Reinforced Chassis: Handles axle loads up to 2,410kg

Technical Specifications

Model	PS12N(3600)	PS16N(5500)	PS20N(4600)
Load Capacity	1.2 T	1.6 T	2.0 T
Lift Height	3,530 mm	5,430 mm	4,530 mm
Free Lift Height	1,760 mm	1,820 mm	1,520 mm
Travel Speed	8.0 km/h	7.0 km/h	7.0 km/h
Battery (V/Ah)	24V/180Ah	24V/270Ah	24V/350Ah
Lift Motor Power	3.2 kW	3.2 kW	3.2 kW
Min. Aisle Width	2,230 mm	2,290 mm	2,420 mm
Turning Radius	1,380 mm	1,420 mm	1,550 mm
Energy Consumption	0.95 kWh/h	1.34 kWh/h	1.70 kWh/h
Noise Level	<69 dB(A)	<69 dB(A)	<69 dB(A)

Key Innovations

Dual-Pallet Engineering
- Optimized fork spread (adjustable) secures two standard pallets
- Low center of gravity (wheelbase: 1,167–1,327mm) prevents tip-overs
Ergonomic Operator Control
- Adjustable tiller height (950–1,350mm) reduces fatigue
- Single-pedestrian operation with intuitive AC controls
Battery Intelligence
- High-capacity 24V systems (160–350Ah) for 8+ hour shifts
- Regenerative braking extends battery life

Ideal Applications

Beverage & Food Distribution: Simultaneous handling of full/empty pallets
Retail Warehousing: Rapid stock rotation in confined spaces
Automotive Parts: Heavy component stacking (axle load: 2,410kg)
E-commerce Fulfillment: High-volume order processing

*"The PS16N moves 120+ dual pallets per shift in our 3m aisles – doubling throughput without expanding footprint."*
– Warehouse Manager, Logistics Chain Inc.
