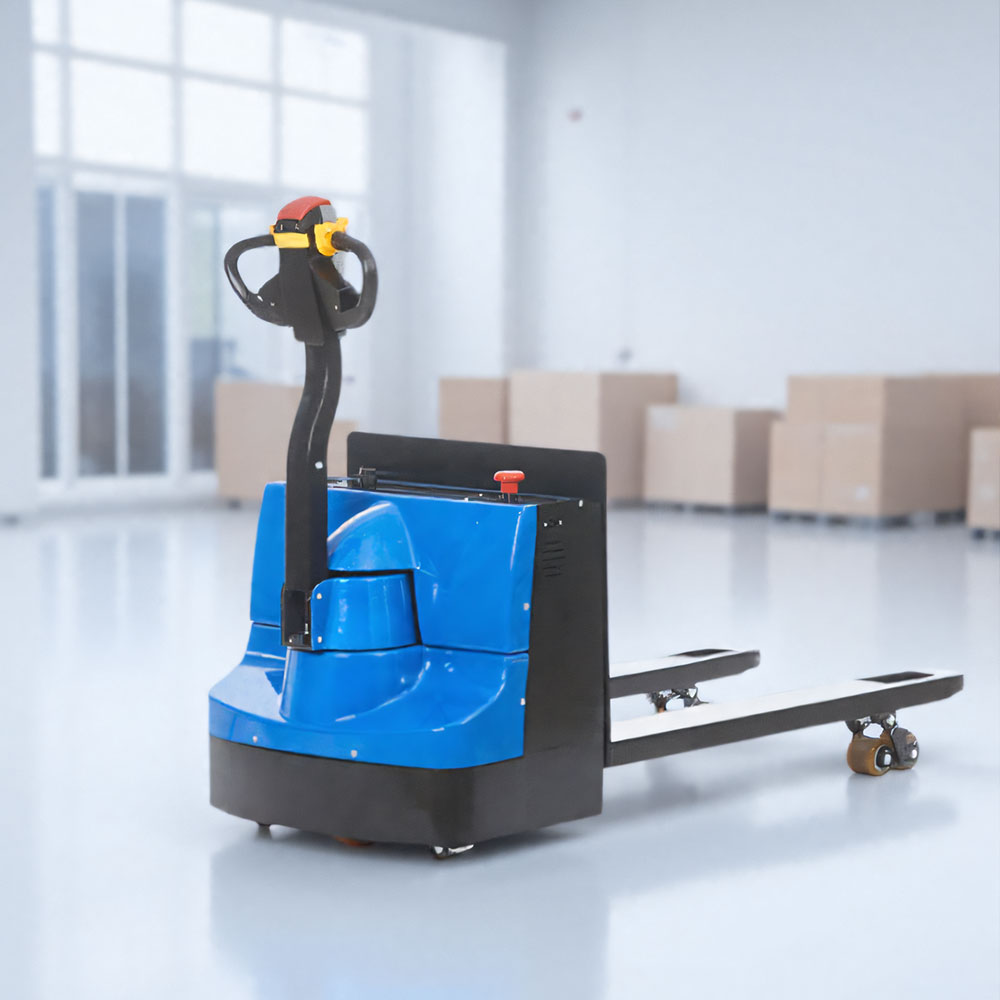

2ton Self Propelled Lithium Battery Powered Pallet Jacks on Sale

Ultimated Solution Walkie Behind Pallet Jacks 2ton with Lithium battery 24v 30ah for long time warehouse material handling work.

Compared to some hot models you can see in the market, this models feature as a bigger battery for longer working time.

It would be alternative solution to standard electric jacks with working hours only 4hours around.

Load capacity	kg	2000
load centre	mm	600
operate type		walkie
EPS		no
Lifting height	mm	85~190
max fork height	mm	190
lowest height	mm	85
handlebar height	mm	1150
truck height	mm	695
standard fork width(outside)	mm	560/680
fork length	mm	1150
fork thickness	mm	54
fork width	mm	160
total length	mm	1620/1630
truck length( without fork)	mm	458
truck width	mm	680
minimum turning raidus(without handle bar)	mm	1430/1440
Mini 90° turning radius ( pallet800x1200)	mm	2315
Mini 90° turning radius pallet(1000x1200)	mm	2415
Self weight	kg	285
Battery weight	kg	50
No. Driving whee/ bearing wheel		3
Driving wheel size	mm	210
bearing wheel size	mm	80
Balance wheel size	mm	70
Wheel distance	mm	1265
Driving motor	kw	0.75
lifting motor	kw	0.8
Battery voltage	V	48
Batter capacity	Ah	30
Max battery size	mm	120220340 (Li)
Brake		Electr0- Magnet
Controller		PVM48S05
Max drive speed	full load	km/h	2.5
	No load	km/h	3
Max lifting speed	full load	m/s	0.035
	No load	m/s	0.045
Max lowering speed	full load	m/s	0.05
	No load	m/s	0.04
Gradeability	full load	%	5
	No load	%	7
Wheels(Front/rear)		PU
